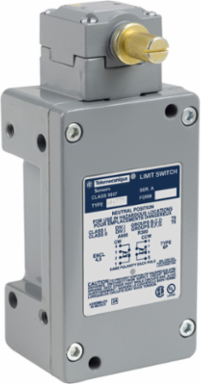

Telemecanique Sensors 9007CR65B1S22 9007, limit switch 600 V 10amp c special +opti

MPN: 9007CR65B1S22
UPC: 785901319337
PPN: TES-9007CR65B1S22
UNSPSC: 39122213

$597.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

9007, limit switch 600 V 10amp c special +opti

Documentation & Downloads

Specifications

Key Specifications

Series Name	heavy duty
Device Short Name	C

Head Type	type C turret head rotary lever
Provided Equipment	receptacle

Complementary

Switch Actuation	CCW
Contacts Type And Composition	2 NO/2 NC two stage
Tripping Angle	4 °
Contact Operation	snap action
Body Material	zinc alloy
Cable Entry	0.5 in NPT conduit entry

Maximum Displacement Angle	90 °
Pilot Light	without pilot lamp
Torque Value	4 lbf.in
Contacts Material	silver alloy (Ag/Ni)
Line Rated Current	10 A
Specificity Of Operator	first stage : 10° - second stage : 2.5° \|\| standard pre-travel

Environment

Product Certifications	UL Listed \|\| CE \|\| CSA
Environmental Characteristic	hazardous location

Ambient Air Temperature For Operation	-20-185 °F

Contractual warranty

Warranty	18 months

Offer Sustainability

Environmental Disclosure	ENVPEP111160EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive	Not applicable, out of EU RoHS legal scope
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
