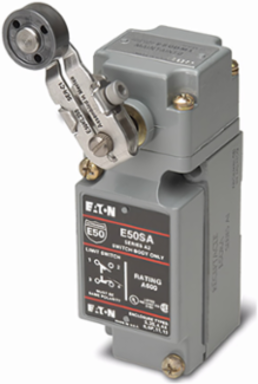

Eaton E50BS3 Eaton E50 NEMA heavy duty plug-in limit switch, Within 0.003, Screw Terminals, 10A at 240Vac, 1A at 250Vdc, 2NO-2NC, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 10A, 1A, 14° to 201°F (-10° to 94°C), Side Push Roller
- MPN: E50BS3
- UPC: 782113328485
- PPN: CUT-E50BS3
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton E50 NEMA heavy duty plug-in limit switch, Within 0.003, Screw Terminals, 10A at 240Vac, 1A at 250Vdc, 2NO-2NC, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 10A, 1A, 14° to 201°F (-10° to 94°C), Side Push Roller
Documentation & Downloads
Specifications
Key Specifications
- Enclosure material
- Die cast zinc
- Accuracy
- Within 0.003
- Contact Rating
- 10A at 240Vac, 1A at 250Vdc
- Maximum AC current
- 10 A
- Operating temperature - max
- 201 °F
- Environmental rating
- NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Contact configuration2 NO-2 NC
Switch typeSide push roller
Operating temperature - min14 °F
Maximum DC current1 A
ConnectionScrew terminal
General
- UPC
- 782113328485
- Product Height
- 1 in
- Product Weight
- 1.2 lb
- Compliances
- CE Marked
- Catalog Notes
- Roller can be converted in the field between horizontal and vertical
Product Length/Depth4 in
Product Width3 in
Warranty1 year
CertificationsCSA Certified
