RAB 099828 Linear Vapourproof LED FW4-LED41 41W 120-347V Variable Temp Dimmable Stainless Steel Clips
- MPN: 099828
- UPC: 061184998286
- PPN: RAB-099828
CAD
$190.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

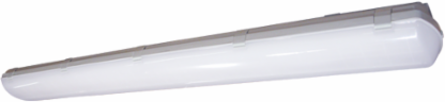

The FW4-LED is a 4' LED linear vapourproof fixture. Ideal for a variety of indoor and outdoor environments such as underground parking garages, industrial facilities, poultry barns, and commercial freezers.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-347V
- Lumen Output
- 5028 lm
- Power Factor
- 0.95
- CRI
- >83
- Fixture Length
- 4 ft
- Width
- 51 in.
- Weight
- 7.7 lbs
- Lens Material
- Polycarbonate
- Mounting
- Surface or Pendant Mounting
- Ingress Protection
- IP65
- Surge Protection
- 2kV (120-277V), 4kV (120-347V)
- Colour Temp Switch
- Flip switch inside fixture
- Battery Recharge Time
- 24 Hours
Watts41.1W
Efficacy122.16 lm/W
Total Harmonic Distortion6.4%
Operating Temperature Range-40°C to +40°C
Height6.8 in.
Depth4 in.
MaterialsPolycarbonate Grey
Dimming0-10V
Colour Temperature3000K, 4000K, 5000K Selectable
CertificationsUL Listed, NSF, NEMA 4X, IK10, DLC 5.1
LED Life (L80)71,000 Hours
Battery Backup8W, 90 min discharge
Country of OriginChina
