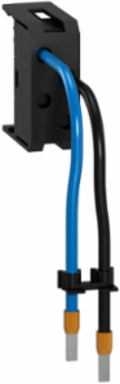

Schneider Electric AK5PC32LPH Linergy HK Plug Outlet 2P 32A 1 Point 1 m Cable Length
- MPN: AK5PC32LPH
- PPN: SCH-AK5PC32LPH
- UNSPSC: 39131701
CAD
$50.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for reliability and performance, the Linergy HK plug outlet from Schneider Electric is an essential component for any electrical installation. With a robust design that accommodates a 32A current, this outlet features a compact profile measuring 46 mm in height, 18 mm in width, and 38 mm in depth, making it easy to integrate into various setups. The 1-meter cable length ensures flexibility in installation, while its adherence to international standards such as IEC 60439 guarantees safety and efficiency. This product not only boasts impressive specifications, including a peak current capacity of 25 kA, but also reflects a commitment to sustainability with packaging made from recycled materials.
Features
- Removable power sockets
- The conventional free air thermal current is 32A
- Panel easily upgradable
- Multi-standard system of up to 160 A
- Compactness with mounting plate version
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 38 mm |
|---|
Physical Attributes
| Cable Length | 1 m |
|---|
Complementary Attributes
| Ui Rated Insulation Voltage | 600 V CSA, 600 V UL690 V IEC 60439-1 |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL, DNV, LROS (Lloyds register of shipping), CSA |
| Local Publishable Date | 2025-07-15 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Number Of Cables | 2 4-4 mm² |
| Number Of Poles | 2P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | plug outlet |
| Range | Linergy |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 18 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 32 A |
| Silicone Free | Yes |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2527 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Number Of Points | 1 |
| Peak Current | 25 kA |
| Product Name | HK |
| Quantity Per Set | set of 6 |
| Range Of Product | AK5 |
| Sustainable Packaging | Yes |
| Height Nominal | 46 mm |
| I²T On Activation | 200000 A².s |
| Customs Code | 8544429090 |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | plug outlet |
|---|
| Range Of Product | AK5 |
|---|
ETIM
| ETIM 8 | EC000008 |
|---|---|
| ETIM 10 | EC000008 |
| ETIM 9 | EC000008 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
