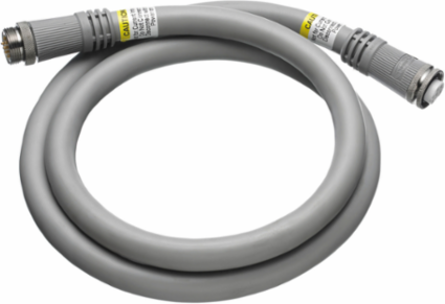

Hubbell Wiring Device-Kellems PH1003PA005 Linkosity 10A 3W Double Ended Cable 5 Inch, PVC Insulation
- MPN: PH1003PA005
- UPC: 783585504513
- PPN: HBL-PH1003PA005
- UNSPSC: 32151902
CAD
$206.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linkosity, 10A, 3W, Double Ended Cable, 5'
Features
- Linkosity
- 10A
- 3W
- Double Ended Cable
- 5'
- Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 12.000 in
- Application
- Quick Connect/Disconnect Signal and Control
- Conductor Size
- #12 AWG
- Number of Conductors
- 3-Pole
- Plug Type
- Linkosity
- Strands
- Multi
- Voltage Rating
- 600V kV
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Number Of Conductors
- 3-Pole
- Description - Invoice
- 10A 3W DBL END CBL, 5', PA STYLE
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Construction
- Fabricated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating10 A
Amperage Rating10 A
ColorGray
InsulationPVC
Outside Diameter0.71
Special FeaturesGreen/Yellow/Black Wires
Temperature Rating-20 Deg C to 105 Deg C
Engineering Drawing 1 Display TextPH1003PA005 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating10 A
BOX SIZE4.000x18.000x18.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585504513
Each - Pack DescriptionEach
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Yes
