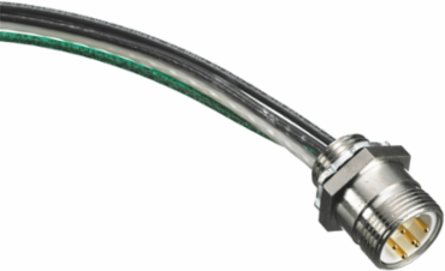

Hubbell Wiring Device-Kellems RM2004PA005 Linkosity Male Receptacle 20A 4W, Composite, 4-Pole
Hubbell Wiring Device-Kellems RM2004PA005 Linkosity Male Receptacle 20A 4W, Composite, 4-Pole
- MPN: RM2004PA005
- UPC: 783585504766
- PPN: HBL-RM2004PA005
- UNSPSC: 32151905
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$215.60/ EA
Description
Linkosity, Male Receptacle, 20A 4W
Features
- Linkosity20A 4W
- Green/Yellow/Black Wires
Specifications
Specifications
- Country of Origin
- United States
- Width
- 0.600 in
- Application
- Power and Control Integration
- Conductor Size
- #12 AWG
- Number of Conductors
- 4
- Special Features
- Green/Yellow/Black Wires
- Wattage
- 12000
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Description - Invoice
- LINKOSITY MALE RCPT, 20A 4W, 5', PA
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Construction
- Fabricated
- Material
- Composite
- BOX SIZE
- 8.245x5.000x10.125 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585504766
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorGray
NEMA RatingNon-NEMA
Number of Poles4-Pole
Voltage Rating600V Max kV
Engineering Drawing 1 Display TextRM2004PA005 AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Number Of Conductors4
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack47.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
