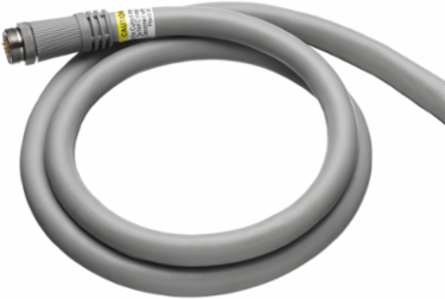

Hubbell Wiring Device-Kellems PN1003PB005 Linkosity Male Right Angle Cable 3-Wire 10A 5 Foot
- MPN: PN1003PB005
- UPC: 783585128153
- PPN: HBL-PN1003PB005
- UNSPSC: 32151902
CAD
$140.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linkosity, Male Right Angle Cable, 3-Wire, 10A, 5' Cable.
Features
- Linkosity
- Male Right Angle Cable
- 3-Wire
- 10A
- 5' Cable.
- Green/Yellow/White/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Amperage Rating
- 10 A
- Color
- Gray
- Insulation
- PVC
- Outside Diameter
- 0.71
- Special Features
- Green/Yellow/White/Black Wires
- Temperature Rating
- -20 Deg C to 105 Deg C
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- Linkosity Wiring System
- Number Of Conductors
- 3-Pole
- Description - Invoice
- LINKOSITY10A 3W MALE R/A CBL, 5'
- Harmonization Code
- 8544429090
- MSDS Flag
- Yes
- Construction
- Fabricated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating10 A
ApplicationQuick Connect/Disconnect Signal and Control
Conductor Size#12 AWG
Number of Conductors3-Pole
Plug TypeLinkosity
StrandsMulti
Voltage Rating600V kV
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Conductor TypeCopper
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
Current Rating10 A
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585128153
Each - Pack DescriptionEach
NAICS Code335931A107
