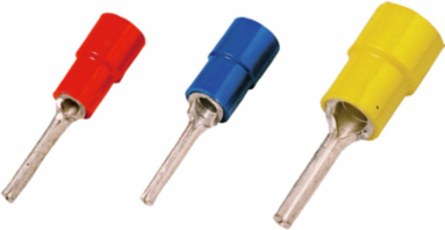

Weidmuller 9200460000 LIP 1,5R12 V
- MPN: 9200460000
- PPN: WDM-9200460000
CAD
$0.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
UNSPSC30-21-18-01
Dimensions And Weights
- Width
- 23.3 mm
- Depth
- 5.8 mm
- Net weight
- 0.71 g
Width (inches)0.917 inch
Depth (inches)0.228 inch
Connectors
- Conductor cross-section, max.
- 1.5 mm²
- Dimension
- 12.0 mm
- Identification colour
- red
- Material/plastic
- PVC
- Plastic collar length (b)
- 11.3 mm
Conductor cross-section, min.0.5 mm²
Dimension (pin length)12 mm
InsulationAvailable
Plastic collar diameter (D)4 mm
Approvals
- Approvals
- GOSTME25
ROHSConform
