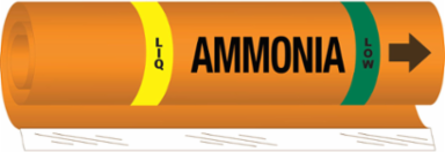

Brady 145789 LIQ AMMONIA LOW Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.
Brady 145789 LIQ AMMONIA LOW Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.
- MPN: 145789
- UPC: 754473545819
- PPN: BRD-145789
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.52/ EA
Description
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Cards or Sheets per Pack
- 1
- Combined IIAR Legend
- AMMONIA LIQ LOW
- Enables Industry Compliance
- IIAR Standard - Bulletin 114
- IIAR Phase
- LIQ
- Language
- English
- Pipe Marker Style
- I
- Printer and Label Applications
- Pipe Marker
- Brady Material Number
- B-689
- Label Properties
- Harsh Environment Labels
- Material
- Coiled Plastic
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Character Height (mm/cm/m)
- 19.1 mm
- Dimensions (Metric)
- 228.6 mm H
- Height (in/ft/yd)
- 9 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 2.375 in
- Maximum Service Temperature °C
- 120 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 1.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 1.5" Dia. Thru 2.375in Dia.
- Sign Size-General
- 9 in x 8 in
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 8 in
Brand NameBrady®
ColorBlack/Green/Yellow on Orange
Compatible Surface TypesCurved; Rough
IIAR LegendAMMONIA
IIAR Pressure LevelLOW
Pipe Marker Mounting StyleWrap Around
Primary Noun, Basic FunctionPipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut on Cards
Indoor or Outdoor UseOutdoor Use
LaminatedPolyester Overlaminate
Material PropertiesSelf-laminating
SAP B-NumberB-689
Character Height (in/ft/yd)0.75 in
Dimensions9 in H x 8 in W
Dimensions 29 in H x 8 in W
Height (mm/cm/m)228.6 mm
Maximum Outside Pipe Diameter (mm/cm/m)60.33 mm
Maximum Service Temperature °F248 °F
Minimum Outside Pipe Diameter (mm/cm/m)38.1 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)9 in H x 8 in W
SizeI
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)203.2 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
