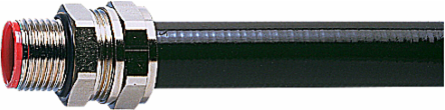

Adaptaflex SPL16/M20/M Liquid Tight Non-Metallic Fitting
- MPN: SPL16/M20/M
- UPC: 786210246727
- PPN: T-B-SPL16/M20/M
CAD
$27.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Nickel Plated Brass Liquid Tight Straight Swivel Fitting with External Thread, Nominal Conduit Size 16 Millimeters, Metric Thread Size 20M
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M20 Thread
IGCC4441 Electrical fittings
TypeLiquid Tight Non-Metallic Fitting
Size3/8 Inch
FinishNickel Plated
ConnectionStraight
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP66-IP69K
- Revolving thread
- Y
- Connection type screw connection to housing
- Thread
- Thread connection size
- M20 x 1.5
- Material housing
- Brass
- Thread length
- 13mm
- Total height
- 25.4mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceN
Surface protectionNickel-plated
Total length34mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULY
Operating temperature-65-+150°C
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity250
Weight Uom0.12 lbs. Each
