Weidmuller 9200370000 LIS 2,5M4 V
- MPN: 9200370000
- PPN: WDM-9200370000
CAD
$0.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

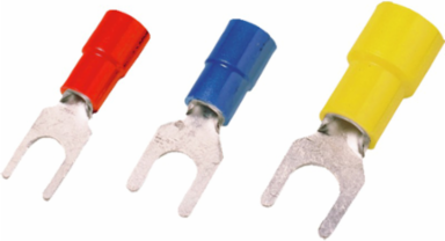

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section, max.
- 2.5 mm²
- Connection density (S1)
- 0.8 mm
- Dimension
- M 4
- Identification colour
- blue
- Insulation
- Available
- Outside diameter (d)
- 7.2 mm
- Plastic collar length (b)
- 11.3 mm
Conductor cross-section, min.1.5 mm²
Connection length (I)17.8 mm
Dimension (bolt)M 4
Inside diameter (d1)4.3 mm
Material/plasticPVC
Plastic collar diameter (D)4.5 mm
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
UNSPSC30-21-18-01
Approvals
- Approvals
- GOSTME25
ROHSConform
Dimensions And Weights
- Width
- 22 mm
- Depth
- 6.1 mm
- Net weight
- 0.8 g
Width (inches)0.866 inch
Depth (inches)0.24 inch
