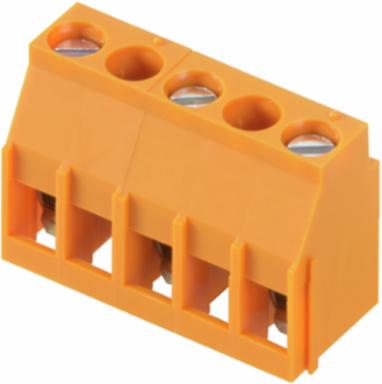

Weidmuller 2613350000 LL 10.16/02/90 3.2SN OR BX
- MPN: 2613350000
- PPN: WDM-2613350000
CAD
$1.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Printed circuit board terminals, 10.16 mm, Number of poles: 2, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group D / UL 1059)
- 10 A
- Wire cross-section, AWG, max.
- AWG 10
Certificate No. (UR)E60693
Rated voltage (Use group C / UL 1059)150 V
Rated current (Use group B / UL 1059)30 A
Wire cross-section, AWG, min.AWG 26
Reference to approval valuesSpecifications are maximum values, details - see approval certificate.
Approvals
- Approvals
- CSA, UR
UL File Number SearchE60693

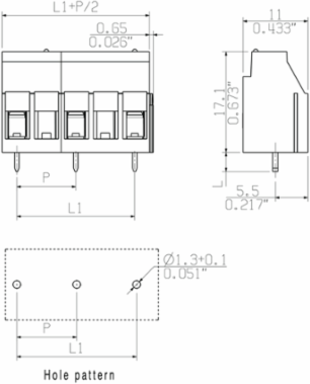

Dimensions And Weights
- Width
- 15.24 mm
- Height
- 20.3 mm
- Height of lowest version
- 17.1 mm
- Depth (inches)
- 0.433 inch
Width (inches)0.6 inch
Height (inches)0.799 inch
Depth11 mm
Net weight7.4 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 32 A
- Rated current, max. number of poles (Tu=40°C)
- 30.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 8 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
Rated current, min. number of poles (Tu=20°C)32 A
Rated current, min. number of poles (Tu=40°C)32 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/3630 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- GWFI
- 960 °C
- Contact surface
- tinned
- Tinning type
- matt
- Storage temperature, min.
- -25 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Insulating material groupI
Insulation strength≥ 108 Ω
GWIT960 °C
Contact materialCopper alloy
Coating4-6 μm SN
Layer structure of solder connection2-4 µm Ni / 4-6 µm Sn
Storage temperature, max.55 °C
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Signal - series LL
- Property, clamping point
- WireReady
- Conductor outlet direction
- 90°
- Pitch in inches (P)
- 0.4 inch
- Fitted by customer
- Yes
- Max. adjacent poles per row
- 8
- Solder pin dimensions
- 0.75 x 0.9 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Screwdriver blade
- 0.6 x 3.5
- Tightening torque, min.
- 0.5 Nm
- Clamping screw
- M 3
- Insulation strength
- ≥ 108 Ω
Wire connection methodClamping yoke connection
Mounting onto the PCBTHT solder connection
Pitch in mm (P)10.16 mm
Number of poles2
Number of rows1
Solder pin length (l)3.2 mm
Solder eyelet hole diameter (D)1.3 mm
Number of solder pins per pole1
Screwdriver blade standardDIN 5264
Tightening torque, max.0.6 Nm
Stripping length6 mm
Packing
- VPE length
- 0
- VPE height
- 0
VPE width0
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Wire connection cross section AWG, min.
- AWG 26
- Solid, min. H05(07) V-U
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.
- 2.5 mm²
Wire connection cross section AWG, max.AWG 10
Solid, max. H05(07) V-U6 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 30 A
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1202191
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 10
