Weidmuller 1067540000 LL 5.00/03/90 3.2SN BK BX

MPN: 1067540000
PPN: WDM-1067540000

$1.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

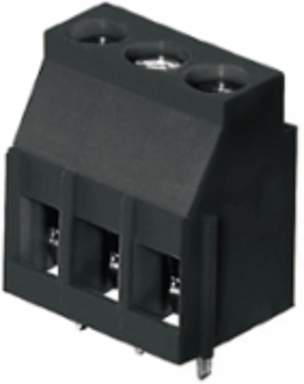

Printed circuit board terminals, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 6 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)	UR
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	20 A
Wire cross-section, AWG, min.	AWG 26
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (UR)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, max.	AWG 12

Approvals

Approvals	EAC, UR
UL File Number Search	E60693

ROHS	Conform

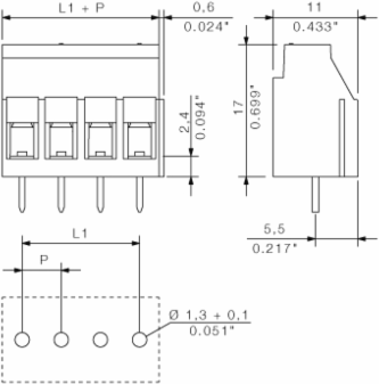

Dimensions And Weights

Width	22.75 mm
Height	14.2 mm
Height of lowest version	17.1 mm
Depth (inches)	0.433 inch

Width (inches)	0.896 inch
Height (inches)	0.559 inch
Depth	11 mm
Net weight	4.61 g

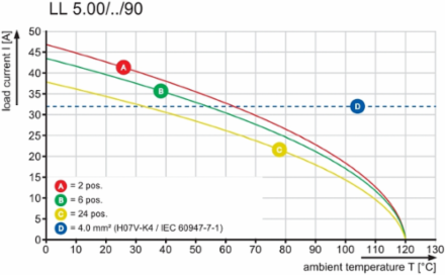

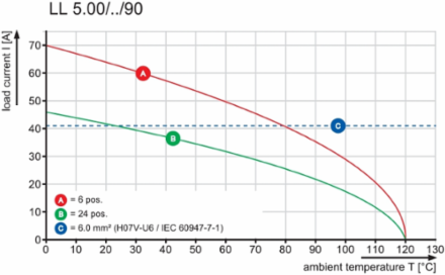

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	26 A
Rated current, max. number of poles (Tu=40°C)	22 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	32.5 A
Rated current, min. number of poles (Tu=40°C)	27.5 A
Rated voltage for surge voltage class / pollution degree II/2	500 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Short-time withstand current resistance	3 x 1s with 120 A

Material Data

Insulating material	Wemid (PA)
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
GWFI	960 °C
Contact surface	tinned
Tinning type	matt
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	black
Insulating material group	I
Insulation strength	≥ 108 Ω
GWIT	960 °C
Contact material	Copper alloy
Coating	4-6 μm SN
Layer structure of solder connection	2-4 µm Ni / 4-6 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01

System Parameters

Product family	OMNIMATE Signal - series LL
Property, clamping point	WireReady
Pitch in mm (P)	5 mm
Number of poles	3
Number of rows	1
Solder pin length (l)	3.2 mm
Solder eyelet hole diameter (D)	1.3 mm
Number of solder pins per pole	1
Screwdriver blade standard	DIN 5264
Tightening torque, max.	0.6 Nm
Stripping length	6 mm
L1 in inches	0.394 inch
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Insulation strength	≥ 108 Ω

Wire connection method	Clamping yoke connection
Conductor outlet direction	90°
Pitch in inches (P)	0.197 inch
Fitted by customer	Yes
Max. adjacent poles per row	24
Solder pin dimensions	0.75 x 0.9 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Screwdriver blade	0.6 x 3.5
Tightening torque, min.	0.5 Nm
Clamping screw	M 3
L1 in mm	10 mm
Touch-safe protection acc. to DIN VDE 0470	IP 20
Volume resistance	1.20 mΩ

Packing

Packaging	Box
VPE width	85 mm

VPE length	80 mm
VPE height	100 mm

Notes

Notes	Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.13 mm²
Wire connection cross section AWG, min.	AWG 26
Solid, min. H05(07) V-U	0.5 mm²
Flexible, min. H05(07) V-K	0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.8 mm x 2.4 mm; 3.0 mm

Clamping range, max.	6 mm²
Wire connection cross section AWG, max.	AWG 12
Solid, max. H05(07) V-U	6 mm²
Flexible, max. H05(07) V-K	4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2.5 mm²
Max. clamping range	6 mm²
