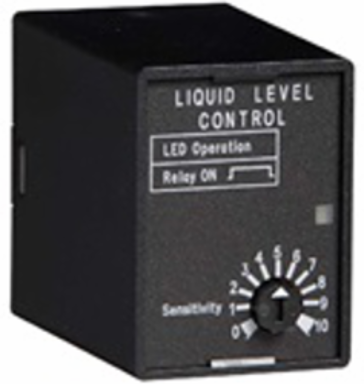

Littelfuse LLC54BAS LLC54BAS - LLC Series
- MPN: LLC54BAS
- UPC: 079458996395
- PPN: LTF-LLC54BAS
CAD
$164.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation Drain (Pump-Down Mode): When the liquid level rises and touches the high level probe, the output relay and LED energize and remain energized until the liquid level falls below the low level probe. The output relay and LED de-energize and remain de-energized until the liquid rises and touches the high level probe. Fill (Pump-Up Mode): When the liquid level falls below the low level probe, the output relay and LED energize and remain energized until the liquid level rises and touches the high level probe. The output relay and LED de-energize and remain de-energized until the liquid level again falls below the low level probe.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 120VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Form
- Isolated SPDT
- Response Time (ms)
- Debounce time delay <1s
- Sense Resistance (Ohms)
- Adjustable to 100kΩ
- Control Type
- Resistance sensing for high and low level detection of conductive liquids
- Termination Type
- Octal 8-pin plug-in
- Operating Temperature
- -20° to 60°C (-4°F to 140°F)
- Dimensions
- 3.01 x 2.39 x 1.78 in. (76.5 x 60.7 x 45.2mm)
Input Tolerance (%)-0.3
Output TypeElectromechanical relay
Output Load Rating (VA)5A resistive @ 240VAC; 1/10hp @ 240VAC
Sense VoltagePulsed DC at probe terminals
Sense Resistance Tolerance1K ±500 Ω at low end; 100kΩ ±25% 0% at high end
Isolation Voltage (V)≥1500V RMS between input output and probe
Mounting MethodPlug-in socket
Storage Temperature (F/C)-40° to 80°C (-40°F to 176°F)
Weight (lbs/g)≅6.0oz (170g)
