Weidmuller 2491650000 LLFS 7.50/05/180V 5.0SN BK BX
- MPN: 2491650000
- PPN: WDM-2491650000
CAD
$9.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

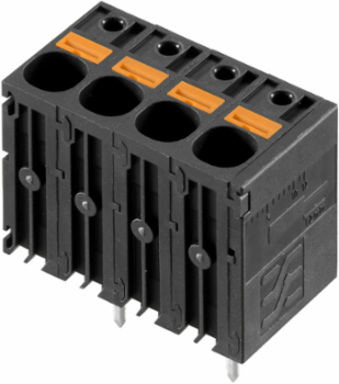

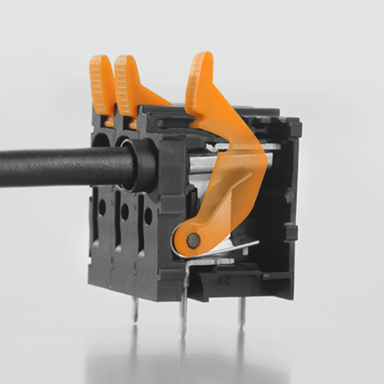

Printed circuit board terminals, 7.50 mm, Number of poles: 5, 180°, Solder pin length (l): 5 mm, tinned, black, PUSH IN without actuator, Clamping range, max. : 6 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group C / UL 1059)
- 37 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group B / UL 1059)37 A
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 8
Approvals
- Approvals
- cURus
UL File Number SearchE60693

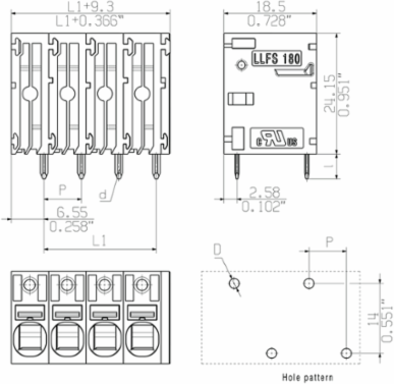

Dimensions And Weights
- Width
- 46.8 mm
- Height
- 29.15 mm
- Height of lowest version
- 24.15 mm
- Depth (inches)
- 0.728 inch
Width (inches)1.843 inch
Height (inches)1.148 inch
Depth18.5 mm
Net weight18.01 g
Rated Data Acc. To Iec
- tested acc. to standard
- In accordance with IEC 60947-7-1

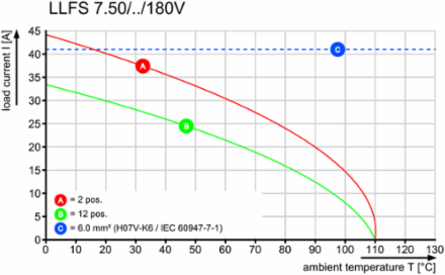

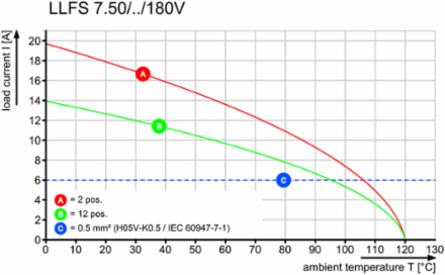

- Rated current, max. number of poles (Tu=20°C)
- 32 A
- Rated current, max. number of poles (Tu=40°C)
- 28 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 8 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
Rated current, min. number of poles (Tu=20°C)41 A
Rated current, min. number of poles (Tu=40°C)38 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Insulation strength
- ≥ 108 Ω
- Contact material
- E-Cu
- Layer structure of solder connection
- 4-10 µ Sn matt
- Storage temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
Colourblack
Insulating material groupI
UL 94 flammability ratingV-0
Contact surfacetinned
Storage temperature, min.-40 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Power - series LL
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 7.5 mm
- Number of poles
- 5
- Number of rows
- 1
- Solder pin dimensions
- d = 1.5 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Stripping length
- 12 mm
- L1 in inches
- 1.476 inch
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
Wire connection methodPUSH IN without actuator
Conductor outlet direction180°
Pitch in inches (P)0.295 inch
Fitted by customerNo
Solder pin length (l)5 mm
Solder eyelet hole diameter (D)2 mm
Number of solder pins per pole1
L1 in mm37.5 mm
Touch-safe protection acc. to DIN VDE 0470IP 20
Insulation strength≥ 108 Ω
Packing
- Packaging
- Box
- VPE width
- 0 m
VPE length0 m
VPE height0 m
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.25 mm²
- Wire connection cross section AWG, min.
- AWG 24
- Solid, min. H05(07) V-U
- 0.5 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Max. clamping range
- 6 mm²
Clamping range, max.6 mm²
Wire connection cross section AWG, max.AWG 8
Solid, max. H05(07) V-U6 mm²
Flexible, max. H05(07) V-K6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.6 mm²
w. wire end ferrule, DIN 46228 pt 1, max.6 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 37 A
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)37 A
Rated current (Use group D / CSA)5 A
