Weidmuller 1330830000 LMF 5.08/13/90 3.5SN OR BX

MPN: 1330830000
PPN: WDM-1330830000

$6.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

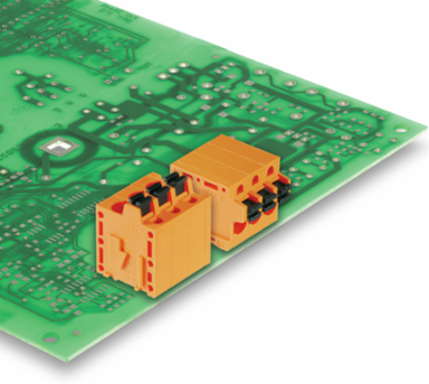

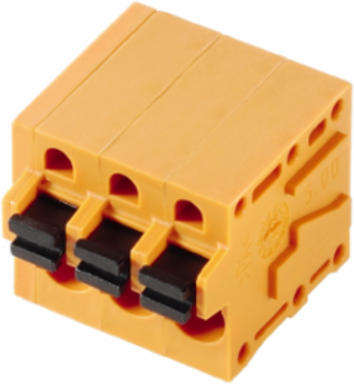

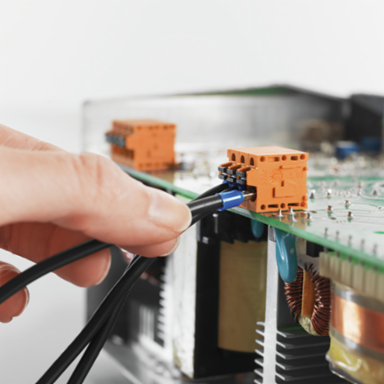

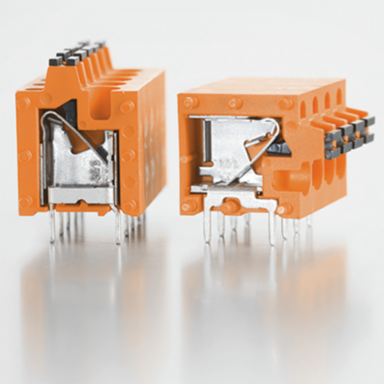

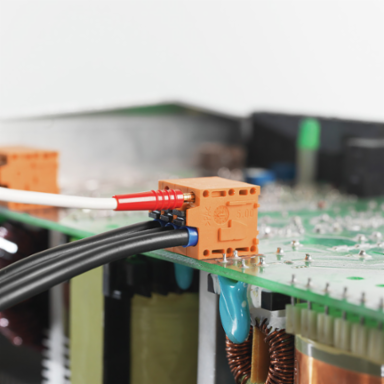

Printed circuit board terminals, 5.08 mm, Number of poles: 13, 90°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN, Clamping range, max. : 2.5 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	20 A
Wire cross-section, AWG, min.	AWG 24
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, max.	AWG 12

Approvals

Approvals	CSA, cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	68.66 mm
Height	18.3 mm
Height of lowest version	14.8 mm
Depth (inches)	0.756 inch

Width (inches)	2.703 inch
Height (inches)	0.72 inch
Depth	19.2 mm
Net weight	19.148 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

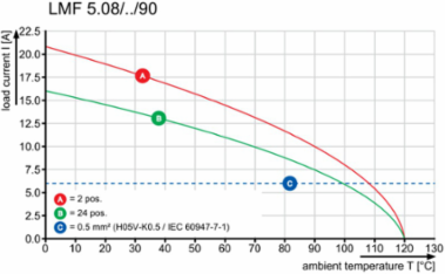

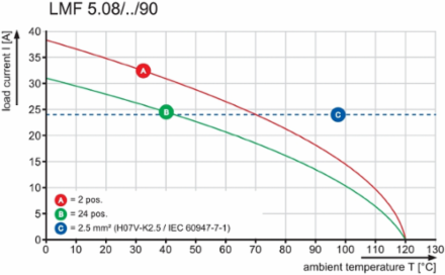

Rated current, max. number of poles (Tu=20°C)	24 A
Rated current, max. number of poles (Tu=40°C)	24 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	24 A
Rated current, min. number of poles (Tu=40°C)	24 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Short-time withstand current resistance	3 x 1s with 120 A

Material Data

Insulating material	Wemid (PA)
Colour of operational elements	black
Colour chart (similar)	RAL 2000
Insulation strength	≥ 108 Ω
Contact material	CuSn
Coating	4-6 μm SN
Layer structure of solder connection	4-6 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	orange
Material of operational elements	PBT
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact surface	tinned
Tinning type	matt
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01

System Parameters

Product family	OMNIMATE Signal - series LMF
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	5.08 mm
Number of poles	13
Number of rows	1
Solder pin length (l)	3.5 mm
Solder eyelet hole diameter (D)	1.1 mm
Number of solder pins per pole	2
Screwdriver blade standard	DIN 5264
L1 in mm	60.96 mm
Touch-safe protection acc. to DIN VDE 0470	IP 20
Insulation strength	≥ 108 Ω

Wire connection method	PUSH IN
Conductor outlet direction	90°
Pitch in inches (P)	0.2 inch
Fitted by customer	No
Max. adjacent poles per row	24
Solder pin dimensions	d = 0.8 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Screwdriver blade	0.6 x 3.5
Stripping length	10 mm
L1 in inches	2.4 inch
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch

Packing

Packaging	Box
VPE width	135 mm

VPE length	348 mm
VPE height	30 mm

Notes

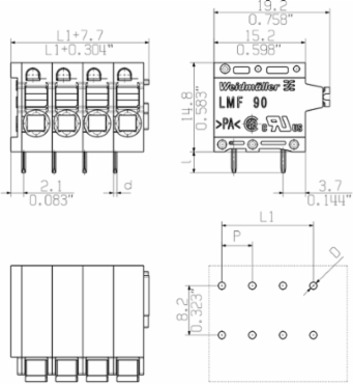

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.12 mm²
Wire connection cross section AWG, min.	AWG 24
Solid, min. H05(07) V-U	0.5 mm²
Flexible, min. H05(07) V-K	0.25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.25 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.25 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.4 mm x 1.5 mm

Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 12
Solid, max. H05(07) V-U	2.5 mm²
Flexible, max. H05(07) V-K	2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2.5 mm²
Max. clamping range	2.5 mm²

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	300 V
Rated current (Use group B / CSA)	20 A
Wire cross-section, AWG, min.	AWG 24
Reference to approval values	Specifications are maximum values, details - see approval certificate.
