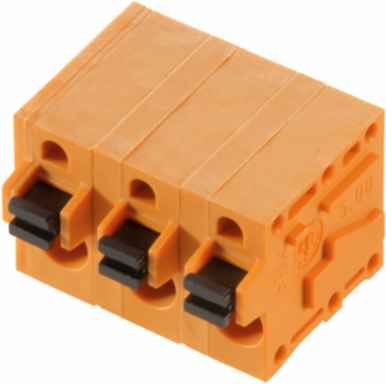

Weidmuller 2667850000 LMF 7.50/06/90 3.5SN OR BX
- MPN: 2667850000
- PPN: WDM-2667850000
CAD
$4.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

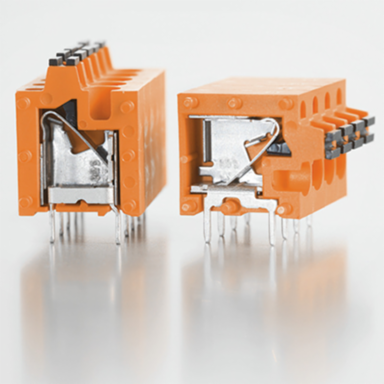

Printed circuit board terminals, Number of poles: 6, 90°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN, Clamping range, max. : 2.5 mm², Box
Specifications
Dimensions And Weights
- Width
- 35.2 mm
- Height
- 18.3 mm
- Height of lowest version
- 14.8 mm
- Depth (inches)
- 0.756 inch
Width (inches)1.386 inch
Height (inches)0.72 inch
Depth19.2 mm
Net weight0 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 24 A
- Rated current, max. number of poles (Tu=40°C)
- 24 A
Rated current, min. number of poles (Tu=20°C)24 A
Rated current, min. number of poles (Tu=40°C)24 A
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- Wemid (PA)
- Colour of operational elements
- black
- Colour chart (similar)
- RAL 2000
- Insulation strength
- ≥ 108 Ω
- Contact material
- CuSn
- Coating
- 4-6 μm SN
- Layer structure of solder connection
- 4-6 µm Sn matt
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Material of operational elementsPBT
Comparative Tracking Index (CTI)≥ 600
UL 94 flammability ratingV-0
Contact surfacetinned
Tinning typematt
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Signal - series LMF

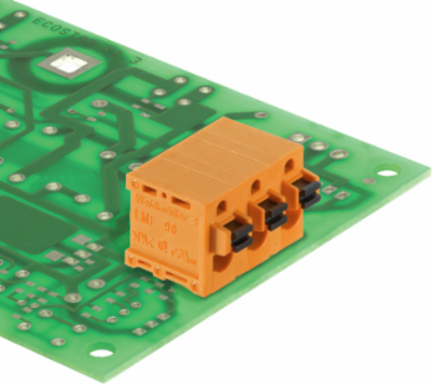

- Mounting onto the PCB
- THT solder connection
- Number of poles
- 6
- Solder pin length (l)
- 3.5 mm
- Solder eyelet hole diameter (D)
- 1.1 mm
- Number of solder pins per pole
- 2
- Screwdriver blade standard
- DIN 5264
- L1 in mm
- 37.5 mm
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch

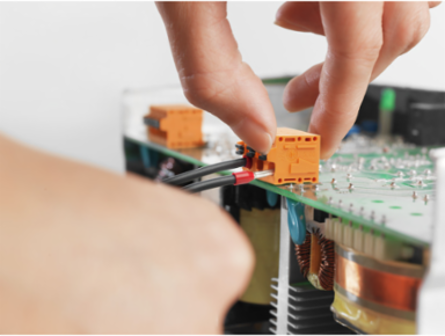

Wire connection methodPUSH IN
Conductor outlet direction90°
Number of rows1
Solder pin dimensionsd = 0.8 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade0.6 x 3.5
Stripping length10 mm
Touch-safe protection acc. to DIN VDE 0470IP 20
Insulation strength≥ 108 Ω
Packing
- Packaging
- Box
- VPE width
- 0
VPE length0
VPE height0
Notes
- Notes

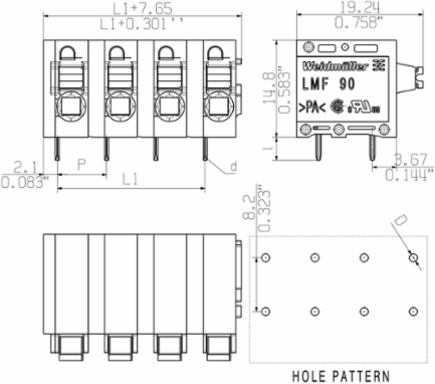

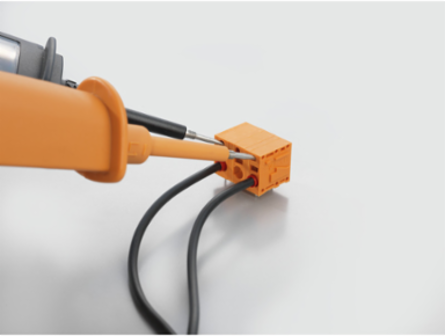

- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.12 mm²
- Wire connection cross section AWG, min.
- AWG 24
- Solid, min. H05(07) V-U
- 0.5 mm²
- Flexible, min. H05(07) V-K
- 0.25 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Max. clamping range
- 2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
