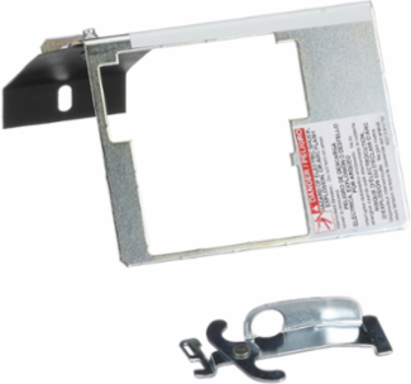

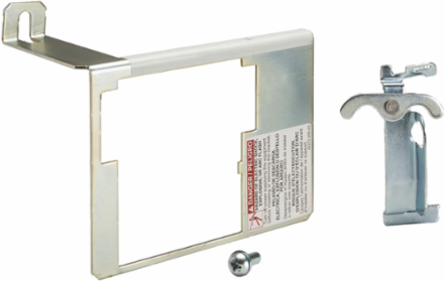

Square D PK4DTIM4LA Load center accessory, QO, manual transfer kit, 1 phase, 100A to 125A, for convertible main load centers, right side
- MPN: PK4DTIM4LA
- UPC: 785901400271
- PPN: SCH-PK4DTIM4LA
- UNSPSC: 39121101
CAD
$304.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This accessory is a manual transfer kit. It is used with 1 phase 100A to 125A systems. It is compatible with convertible main load centers and configured for the right side.
Features
- Enables safe switching between utility power and backup generator.
- Prevents backfeeding to the utility, protecting linemen and equipment.
- Improves reliability during outages by providing quick manual transfer.
- Simple installation in existing load centers without major rewiring.
- Maintains code compliance for emergency power transfer.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Sustainable Packaging | No |
| Customs Code | 8538906000 |
| Local Publishable Date | 2026-07-14 |
|---|---|
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2436 |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Product Or Component Type | Circuit Breaker Retaining Kit |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | Circuit Breaker Retaining Kit |
|---|
| Range Of Product | QO |
|---|
ETIM
| ETIM 8 | EC002287 |
|---|---|
| ETIM 10 | EC002287 |
| ETIM 9 | EC002287 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
