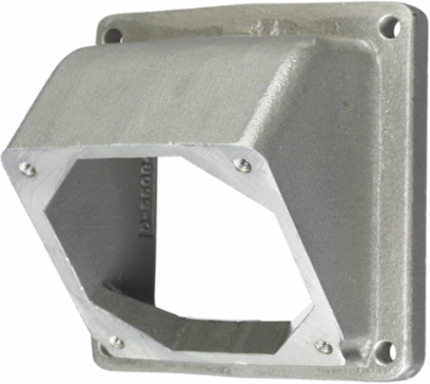

Hubbell Wiring Device-Kellems HBL26404 Hubbellock Cast Aluminum 4.5 Inch Angled Adapter for 60A Devices
- MPN: HBL26404
- UPC: 783585017358
- PPN: HBL-HBL26404
- UNSPSC: 39121332
CAD
$346.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Hubbellock®, Industrial, Cast Aluminum Angled Adapter(45 degree), For 60A Hubbellock®
Features
- Rugged cast aluminum construction provides maximum strength and abuse resistance in harsh environments
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Industry Standard(s) | Certified to CSA Standard;Listed to UL Standard |
| Performance | Environmental - Moisture Resistance - IP44 Suitability |
| Number of Outlet | Accepts 1-Device |
| Special Features | Standard Product |
| Temperature Range | Limited By Device |
| Width | 3.44 in |
| Display Size | For 60 Amp Devices |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 26404 |
| Material - Mounting Hardware | Mounting Screws |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 13.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585017357 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Dimensions | 4.5 in x 3.44 in x 4.5 in |
|---|---|
| Length | 4.5 in |
| Height | 4.5 in |
| Size | 4.5 in x 3.44 in x 4.5 in |
| Standard | Certified to CSA Standard;Listed to UL Standard |
| Type | Adapter Plate |
| Weight | 1.25 lb. |
| Number Of Outlets | Accepts 1-Device |
| Description - Invoice | ALUM ADAP, ANG, FOR 26401 BOX |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Sub Class Code | A08A170 |
| Construction | Cast |
| BOX SIZE | 8.100x24.900x11.700 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585017358 |
| Case Weight | 14.216 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 40.500 in |
| Pallet Weight | 411.000 lb. |
| NAICS Code | 3359326103 |
