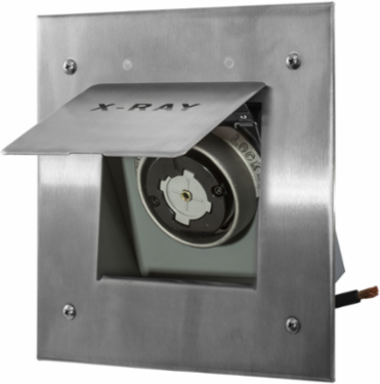

Hubbell Wiring Device-Kellems HBL25505 Hubbellock Mobile X-Ray Receptacle 50A 250V 2-Pole 3-Wire Grounding
- MPN: HBL25505
- UPC: 783585016030
- PPN: HBL-HBL25505
- UNSPSC: 39121406
CAD
$2798.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hubbellock, Mobile X- Ray, Receptacle, 50A 250V 2-Pole 3-Wire Grounding, Non NEMA, Screw Terminal
Features
- Mobile X- Ray
- Receptacle
- 50A 250V 2-Pole 3-Wire Grounding
- With Cast Aluminum Plate
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 11.500 in |
| Application | Mobile X-Ray Devices |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Voltage Rating | 250V kV |
| Wire Size | #4 AWG |
| Weight | 4.7 lb. |
| General Literature Asset 2 Display Text | Healthcare Product Solutions |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire Grounding |
| Description - Invoice | H/LOCK RCPT, 2P3W, 50A 250V, X-RAY, SS |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A08A170 |
| Current Rating | 50 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.700 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 50 A |
|---|---|
| Amperage Rating | 50 A |
| Color | Black, Gray |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire Grounding |
| Special Features | With Cast Aluminum Plate |
| Wattage | 12500 W |
| Voltage Rating Description | 250V kV |
| General Literature Asset 1 Display Text | Duct Products Guide |
| General Literature Asset 3 Display Text | Healthcare Application Guide |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 25505 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| BOX SIZE | 5.600x10.900x11.500 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585016030 |
| Case Weight | 4.700 lb. |
| Lowest Level UOM | Each |
