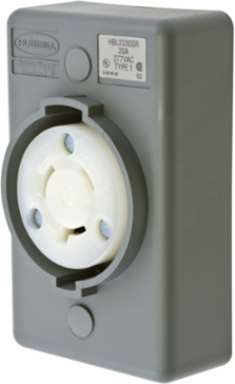

Hubbell Wiring Device-Kellems HBL2330SR Twist-Lock Safety Shroud Receptacle 20A 277V AC, 2-Pole, 1-Gang
Hubbell Wiring Device-Kellems HBL2330SR Twist-Lock Safety Shroud Receptacle 20A 277V AC, 2-Pole, 1-Gang
- MPN: HBL2330SR
- UPC: 783585234182
- PPN: HBL-HBL2330SR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.02/ EA
Description
Locking Devices, Twist-Lock®, Safety-Shroud®, Surface Mount Receptacle, One Gang, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, Gray.
Features
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- Surface Mount
Specifications
Specifications
- Country of Origin
- PR
- Dimensions
- 4.56 in x 2.84 in x 1.58 in
- Height
- 1.58 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial Shrouded
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Surface Mount
- Type
- Surface Mount Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.45 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L7-20R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A120
- Current Rating
- 20 A
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 6.875x10.245x8.625 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585234182
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width2.858 in
Horsepower - Maximum2
Length4.56 in
Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL7-20R
Number of Wires3-Wire
Size4.56 in x 2.84 in x 1.58 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating277 V
Voltage Rating Description277 V
Width2.84 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG S/SHRD RCPT, L7-20R, SURF MT, GY
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
