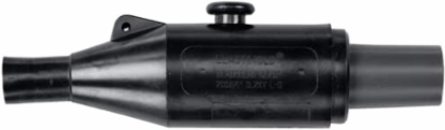

Thomas & Betts K151LS-C1270 LOCKING SPLICE,200A DB,15/25 KV
- MPN: K151LS-C1270
- UPC: 783786505128
- PPN: T-B-K151LS-C1270
- UNSPSC: 39121421
CAD
$1002.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25KV, 200 Amp, Dead Break, Locking Splice/Repair Splice, .805 - 1.060 inch Cable Insulation Diameter, Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
Specifications
Additional Information
- Application
- Used where a new installation is required or to make repairs on existing cable installations.
- Color
- Black
- Effective Date
- 20061027
- Includes
- Receptacle Housing, Splice Pin Connector, Plug Housing, Splice Socket Connector, lubricant, Installation Instructions, Crimp Chart.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Locking Splice
- Special Functions
- Permanent Locking Apparatus, Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide Cured Construction includes Insulation and Conductive EPDM Materials.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsAll Weatheronditions °C
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeLength 9.54 inches
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
