Brady 66051 Lockout Tags: DANGER: DO NOT OPERATE This lock/tag may only be removed by: Name: Date:, DANGER
Brady 66051 Lockout Tags: DANGER: DO NOT OPERATE This lock/tag may only be removed by: Name: Date:, DANGER
- MPN: 66051
- UPC: 754473660512
- PPN: BRD-66051
- UNSPSC: 55121513
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$68.18/ EA
Description
Economy Polyester (B-851) tags are perfect for marking on-the-spot warnings of dangerous conditions.
Features
- B-851 Rigid Economy Polyester with brass grommets, exceeds OSHA's 50 lb pull force requirement for Tagout devices
- Textured write-on surface allows for authorized signatures, dates and other special instructions
- Withstands moisture, grease and dirt
- Stays legible longer than cardstock
Specifications
Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147
- Language
- English
- Perforated
- Not Perforated
- Reverse Header
- DANGER
- Shape
- Rectangle
- Write-On
- Yes
- Brady Material Number
- B-851
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Heavy Duty Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Withstands Pull Force
- 58 lb
- Dimensions (Metric)
- 146.1 mm H
- Height (in/ft/yd)
- 5.75 in
- Hole Inside Diameter (in/ft/yd)
- 0.375 in
- Maximum Service Temperature °C
- 100 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size-General
- 5.75 in x 3 in
- Thickness (mm/cm/m)
- 0.249 mm
- Width (mm/cm/m)
- 76.2 mm
ColorBlack/Red on White
HeaderDANGER
Number of Printed Sides2
Primary Noun, Basic FunctionTag

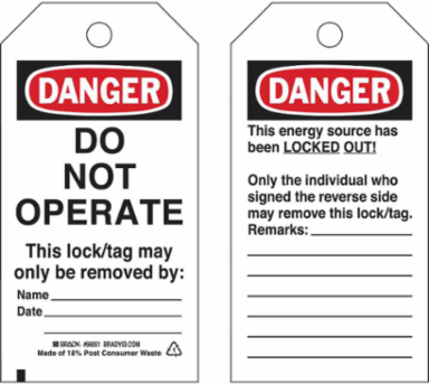

Reverse LegendThis energy source has been LOCKED OUT! Only the individual who signed the reverse side may remove this lock/tag. Remarks
Text LegendDO NOT OPERATE This lock/tag may only be removed by: Name____Date____
Write-On AreaYes
Grommet MaterialMetal
LaminatedSelf-Laminating
Material PropertiesRigid
SAP B-NumberB-851
Dimensions5.75 in H x 3 in W
Dimensions 25.75 in H x 3 in W
Height (mm/cm/m)146.1 mm
Hole Inside Diameter (mm/cm/m)9.5 mm
Maximum Service Temperature °F212 °F
Minimum Service Temperature °F-40 °F
Thickness (in/ft/yd)0.0098 in
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
