Brady 133498 Lockout Tags, DO NOT START This lock/tag may only be removed by: Name: Date:
Brady 133498 Lockout Tags, DO NOT START This lock/tag may only be removed by: Name: Date:
- MPN: 133498
- UPC: 754473900786
- PPN: BRD-133498
- UNSPSC: 55121513
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$68.18/ EA
Description
Economy Polyester (B-851) tags are perfect for marking on-the-spot warnings of dangerous conditions.
Features
- B-851 Rigid Economy Polyester with brass grommets, exceeds OSHA's 50 lb pull force requirement for Tagout devices
- Textured write-on surface allows for authorized signatures, dates and other special instructions
- Withstands moisture, grease and dirt
- Stays legible longer than cardstock
Specifications
Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147
- Primary Noun, Basic Function
- Tag
- Reverse Legend
- This energy source has been LOCKED OUT! Only the individual who signed the reverse side may remove this lock/tag. Remarks:
- Brady Material Number
- B-851
- Laminated
- Not Laminated
- Material Properties
- Rigid
- Withstands Pull Force
- 58 lb
- Dimensions (Metric)
- 146.05 mm H
- Height (in/ft/yd)
- 5.75 in
- Maximum Service Temperature °C
- 100 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size-General
- 5.75 in x 3 in
- Thickness (mm/cm/m)
- 0.249 mm
- Width (mm/cm/m)
- 76.2 mm
ColorBlack/Red on White
HeaderDANGER
Reverse HeaderDANGER

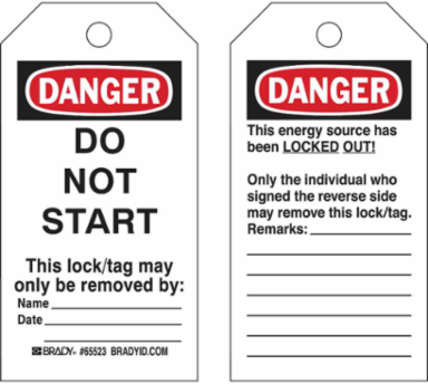

Text LegendDO NOT START This lock/tag may only be removed by: Name____Date____
Indoor or Outdoor UseOutdoor Use
MaterialHeavy Duty Polyester
SAP B-NumberB-851
Dimensions5.75 in H x 3 in W
Dimensions 25.75 in H x 3 in W
Height (mm/cm/m)146.05 mm
Maximum Service Temperature °F212 °F
Minimum Service Temperature °F-40 °F
Thickness (in/ft/yd)0.0098 in
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
