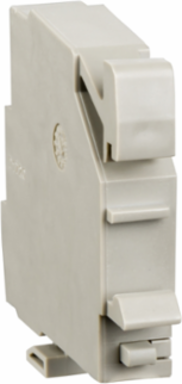

Schneider Electric LV833171SP Chassis position contact, MasterPact MTZ1/MTZ2/MTZ3 drawout, CE/CD/CT position, low level, 3A/240VAC, spare part
- MPN: LV833171SP
- PPN: SCH-LV833171SP
CAD
$115.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Chassis position contact, MasterPact MTZ1/MTZ2/MTZ3 drawout, CE/CD/CT position, low level, 3A/240VAC, spare part
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Minimum Load | 2 mA 15 V |
|---|
Important Information Attributes
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
|---|---|
| [Ie] Rated Operational Current | DC-12 0.3 A 250 V DCDC-12 0.8 A 125 V DCDC-12 2.5 A 24/48 V DCAC-12 5 A 24/48 V AC 50/60 Hz, AC-12 5 A 240 V AC 50/60 Hz, AC-12 5 A 380 V AC 50/60 Hz |
| Local Publishable Date | 2025-08-13 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1910 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Panel Builder |
| Tier | 3 |
| Function Option | Standard |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Offer Type | spare part |
| Product Or Component Type | auxiliary contact |
| Range | MasterPact |
| Signal Contacts Composition | 1 NO/NC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Market Segmentation | Commercial, Industrial |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Persona Type Ids | PB |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | CE/CD/CT |
| Mounting Mode | drawout |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 instruction sheet |
| Returnability | No |
| Sustainable Packaging | Yes |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 63.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | auxiliary contact |
|---|
| Provided Equipment | 1 instruction sheet |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
