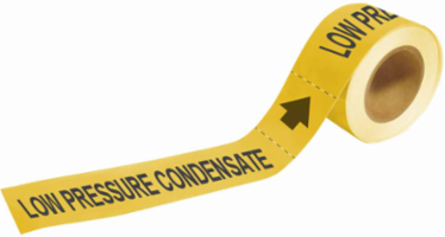

Brady 20444 LOW Pressure Condensate Pipe Marker, 1" H x 8" W, Roll of 25 Each, Fits Pipes 1.5" Dia. Thru 2" Dia.
Brady 20444 LOW Pressure Condensate Pipe Marker, 1" H x 8" W, Roll of 25 Each, Fits Pipes 1.5" Dia. Thru 2" Dia.
- MPN: 20444
- UPC: 754473204440
- PPN: BRD-20444
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$43.67/ EA
Description
These B736 economy pipe markers are ideal for use on clean, dry pipes. Each marker has a diecut design which enables them to be applied in the selected flow directions.
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Curved; High Surface Energy
- Language
- English
- Pipe Marker Mounting Style
- Self-Adhesive
- Primary Noun, Basic Function
- Pipe Marker
- Quantity per Roll
- 25
- Text Legend
- LOW PRESSURE CONDENSATE
- Brady Material Number
- B-736
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Average Outdoor Durability
- 2 Years
- Dimensions (Metric)
- 25.4 mm H
- Height (in/ft/yd)
- 1 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 2 in
- Maximum Service Temperature °F
- 212 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 1.5" Dia. Thru 2in Dia.
- Sign Size-General
- 1 in x 8 in
- Thickness (mm/cm/m)
- 0.084 mm
- Width (mm/cm/m)
- 203.2 mm
Arrow DirectionRight
ColorBlack on Yellow
Enables Industry ComplianceANSI A13.1-2007
Pictogram DescriptionDirectional Arrow Symbol
Pre-Printed Areas on LabelPipe Contents & Pictograms
Printer and Label ApplicationsPipe Marker
Self-Adhesive Pipe Marker FormatRoll Form, Die-Cut to Length
Adhesive TypeAcrylic
Indoor or Outdoor UseOutdoor Use
MaterialPlastic
SAP B-NumberB-736
Dimensions1 in H x 8 in W
Dimensions 21 in H x 8 in W
Height (mm/cm/m)25.4 mm
Maximum Service Temperature °C100 °C
Minimum Application Temperature °C10 °C
Minimum Outside Pipe Diameter (in/ft/yd)1.5 in
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)1 in H x 8 in W
Thickness (in/ft/yd)0.0033 in
Width (in/ft/yd)8 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
