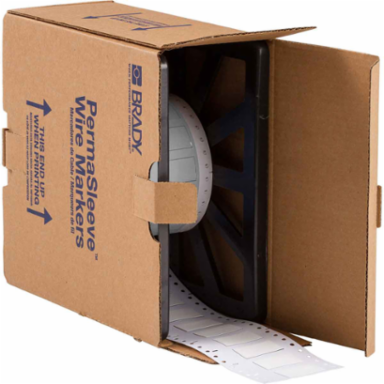

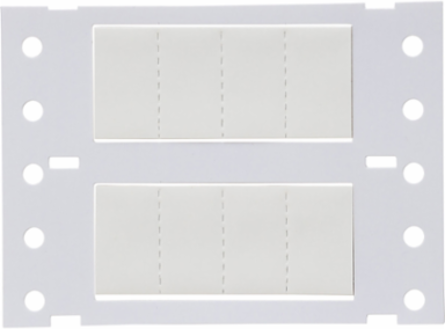

Brady LSZH-500-2-WT-4 Low Smoke Zero Halogen PermaSleeve Heat Shrink Tubing, 0.5" Dia x 0.5" W, White

MPN: LSZH-500-2-WT-4
UPC: 754473944186
PPN: BRD-LSZH-500-2-WT-4
UNSPSC: 39131502

$1299.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.

Features

Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
Compatible with the most stringent requirements in the market today to enhance fire safety needs
2:1 heat-shrink ratio
Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	White
Finish	Matte
Label/Media Format	Roll
Primary Noun, Basic Function	Sleeve
Printable Sides	Single-Side Printable
Printer Compatibility	BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
Quantity per Roll	2000
Recommended Ribbon	IP-R6007; R6007
Shape	Rectangle
Sleeve Slits	Yes
Suggested Ribbon Series	R6000 Halogen Free; R6600
Total Quantity	2000
Adhesive (Y/N)	No
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-Number	B-7641
Diameter as Supplied (in/ft/yd)	0.5 in
Dimensions	0.851 in H
Dimensions 2	0.851 in H
Height (mm/cm/m)	21.60 mm
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter (mm/cm/m)	11.43 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.25 in
Minimum Wire Gauge	6 AWG
Recovered Diameter (mm/cm/m)	6.4 mm
Recovered Wall Thickness (mm/cm/m)	0.71 mm
Roll Width (mm/cm/m)	50.8 mm
Sleeve Size (in/ft/yd)	0.5 in Dia x 0.5 in W
Sleeve Width (in/ft/yd)	0.5 in
Vertical Repeat	1.25 in
Web Width (in/ft/yd)	3.49 in
Wire Diameter Range	0.25 in to 0.45 in

Brand Name	Brady®
Enables Industry Compliance	ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
For Use with Printer	BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll	500
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP12; BBP72; i7100
Quantity per Row	4
Ribbon Series	R6600
Shrink Ratio	2:1
Software Compatibility	LabelMark, CodeSoft
Total Qty per Pack	2000 Sleeve(s) / Roll
Trade Name	PermaSleeve®
Brady Material Number	B-7641
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Diameter as Supplied (mm/cm/m)	12.7 mm
Dimensions (Metric)	12.70 mm W x 21.60 mm H
Height (in/ft/yd)	0.851 in
Maximum Service Temperature °C	105 °C
Maximum Wire Diameter (in/ft/yd)	0.45 in
Maximum Wire Gauge	1 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	6.35 mm
Recovered Diameter (in/ft/yd)	0.25 in
Recovered Wall Thickness (in/ft/yd)	0.028 in
Roll Width (in/ft/yd)	2 in
Size - Width (mm)	12.70 mm
Sleeve Size (mm/cm/m)	12.7 mm Dia x 12.7 mm W
Sleeve Width (mm/cm/m)	12.7 mm
Vertical Repeat (mm)	31.75 mm
Web Width (mm/cm/m)	88.65 mm
Wire Gauge Range	6 AWG to 1 AWG

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
