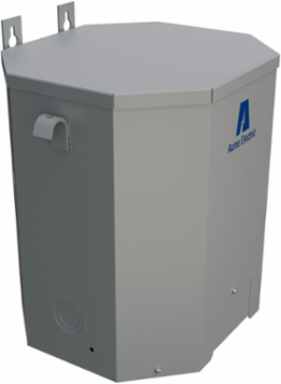

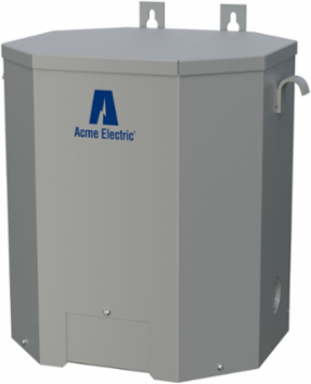

Low Voltage Distribution Transformer 15kVA 600-120V/240V 60Hz
Low Voltage Distribution Transformer 15kVA 600-120V/240V 60Hz
Acme Electric

Acme Electric T2536171S Low Voltage Distribution Transformer 15kVA 600-120V/240V 60Hz

  • MPN: T2536171S
  • UPC: 047503734551
  • PPN: HBL-T2536171S
  • UNSPSC: 39121001

CAD

$4452.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 15kVA

Features

  • Quiet operation with sound levels below NEMA standards
  • Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico
CSA Standard
C22.2 No. 47
kVA
15.0
Product Category
Dry Type Distribution Transformer
Secondary Voltage
120/240 V
Frequency Rating
60 Hz
Length
11.59 in
Primary Voltage
600 V
UL Insulation Class
180°C
Weight
170 lb.
Mounting Type
Wall
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
A
Sub Class Code
D10D100
Winding Material
AL
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503734551
Pallet Length
40.000 in
Pallet Width
40.000 in
BNFC Taps2
Dimensions11.59 in x 14.12 in x 16.94 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5%
Height16.94 in
MountingWall
Width14.12 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x13.000x15.000 (in)
Pallet Height23.000 in
Pallet Weight799.000 lb.
NAICS Code335311

Certifications

Buy American Compliant
Contact Manufacturer
