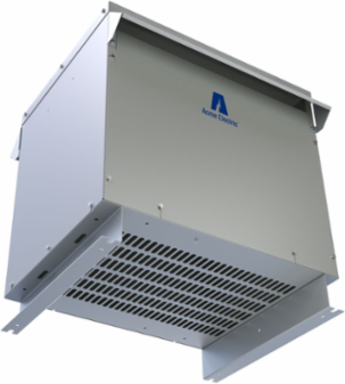

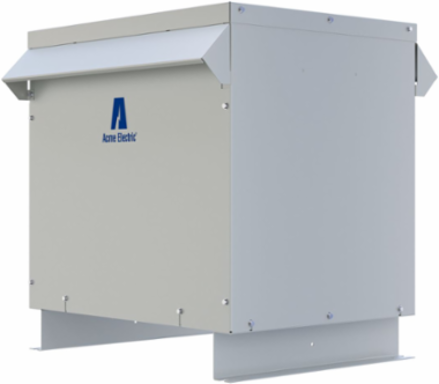

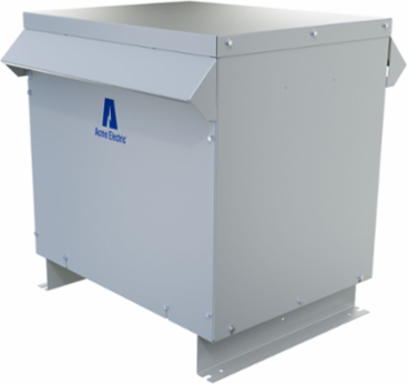

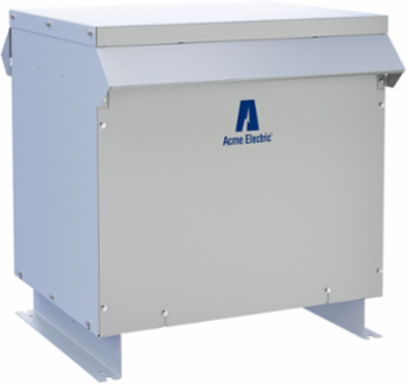

Acme Electric T3030K0083BS Low Voltage Distribution Transformer, 30kVA, 600V, Shielded, NEMA 3R
Acme Electric T3030K0083BS Low Voltage Distribution Transformer, 30kVA, 600V, Shielded, NEMA 3R
- MPN: T3030K0083BS
- UPC: 047503092958
- PPN: HBL-T3030K0083BS
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 600Δ - 208Y/120V, 30kVA, Shielded
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- ANFC Taps
- 2
- Country of Origin
- MX
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- Each - Width
- 24.39 in
- Max Temperature Rise
- 150 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 2.5%
- Frequency Rating
- 60 Hz
- Length
- 19.37 in
- Primary Voltage
- 600D V
- UL Insulation Class
- 220°C
- Weight
- 325 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Electrostatic Shield
- Shielded
- Construction
- Ventilated
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503092958
BNFC Taps4
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
kVA30.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage208Y/120 V
Efficiency98.23%
Height25.5 in
MountingFloor
Width24.39 in
UL StandardUL 1561
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504330020
Sub Class CodeD10D100
Winding MaterialAL
Base Unit of MeasureEA
