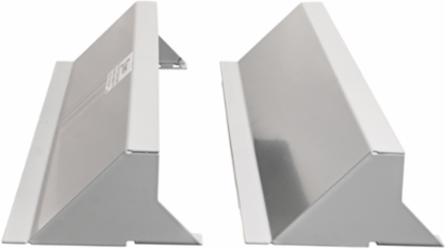

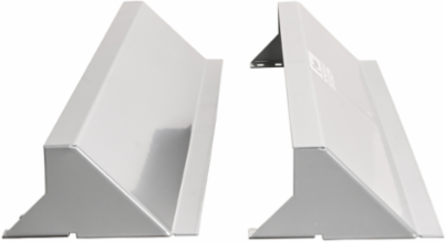

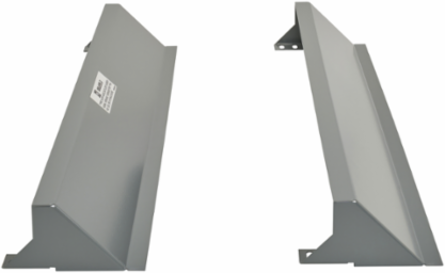

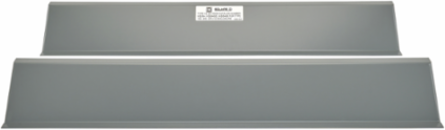

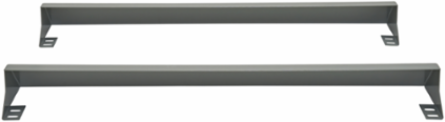

Square D WS364 Weathershield Kit for Low Voltage Transformers, 6.2 Inch H x 29.5 Inch W x 3.125 Inch D
- MPN: WS364
- UPC: 785901357018
- PPN: SCH-WS364
CAD
$541.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
As the industry leading designer, manufacturer, and supplier of low voltage, general purpose transformers. Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. This weathershield is an enclosure accessory. This weathershield, D18 & H18 Transformer, is a bolt-on enclosure accessory, and is made of grey painted steel and is used for indoor/outdoor applications. Dimensions are 6.2 in (H), 29.5 in (W), 3.125 in (D). This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 3.125 in |
|---|
Important Information Attributes
| Box Number | 20D, 19D, 21D |
|---|---|
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PSIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Mounting Mode | bolt-on |
| Product Destination | transformer |
| Returnability | Yes |
| Height Nominal | 6.2 in |
| Accessory / Separate Part Category | enclosure accessory |
| Package Weight(Lbs) | 3.239 kg |
| Warranty (In Months) | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1910 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Material | Gray painted steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | weathershield |
| Sustainable Packaging | No |
| Width Nominal | 29.5 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504909690 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | weathershield |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
