Weidmuller 1870480000 LSF-SMT 3.50/23/90 3.5SN BK TU

MPN: 1870480000
PPN: WDM-1870480000

$7.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

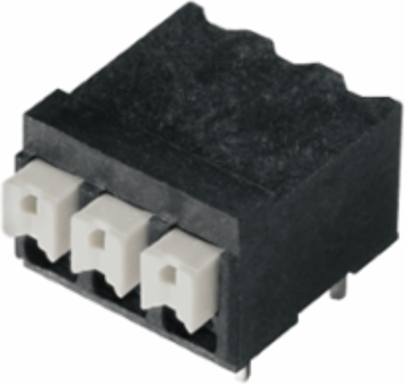

Printed circuit board terminals, 3.50 mm, Number of poles: 23, 90°, Solder pin length (l): 3.5 mm, black, PUSH IN, Clamping range, max. : 1.5 mm², Tube

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	12 A
Wire cross-section, AWG, min.	AWG 28
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, max.	AWG 14

Approvals

Approvals	CSA, cURus, EAC, VDE
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	81.2 mm
Height	13.15 mm
Height of lowest version	9.65 mm
Depth (inches)	0.581 inch

Width (inches)	3.197 inch
Height (inches)	0.518 inch
Depth	14.75 mm
Net weight	15.466 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

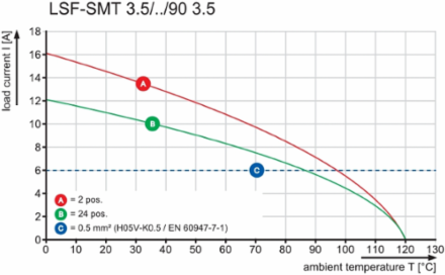

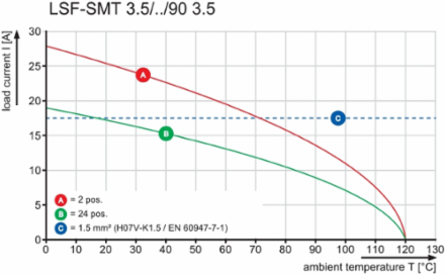

Rated current, max. number of poles (Tu=20°C)	16 A
Rated current, max. number of poles (Tu=40°C)	14 A
Rated voltage for surge voltage class / pollution degree III/2	160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	2.5 kV

Rated current, min. number of poles (Tu=20°C)	17.5 A
Rated current, min. number of poles (Tu=40°C)	17.5 A
Rated voltage for surge voltage class / pollution degree II/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	160 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	2.5 kV
Short-time withstand current resistance	3 x 1s with 80 A

Material Data

Insulating material	LCP GF
Colour of operational elements	white
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 175
Moisture Level (MSL)	1
Contact material	Copper alloy
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	black
Material of operational elements	PPA GF
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
UL 94 flammability rating	V-0
Layer structure of solder connection	4-6 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-30 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01
UNSPSC	30-21-18-11

System Parameters

Product family	OMNIMATE Signal - series LSF
Mounting onto the PCB	THT/THR solder connection
Pitch in mm (P)	3.5 mm
Number of poles	23
Number of rows	1
Solder pin length tolerance	0 / -0.3 mm
Solder pin dimensions = d tolerance	0 / -0.1 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Stripping length	8 mm
L1 in inches	3.031 inch
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Insulation strength	≥ 108 Ω

Wire connection method	PUSH IN
Conductor outlet direction	90°
Pitch in inches (P)	0.138 inch
Fitted by customer	No
Solder pin length (l)	3.5 mm
Solder pin dimensions	0.35 x 0.8 mm
Solder eyelet hole diameter (D)	1.1 mm
Number of solder pins per pole	2
L1 in mm	77 mm
Touch-safe protection acc. to DIN VDE 0470	IP 20
Volume resistance	1.60 mΩ

Packing

Packaging	Tube
VPE width	0
Surface resistance	Rs = 109 - 1012 Ω

VPE length	0
VPE height	0

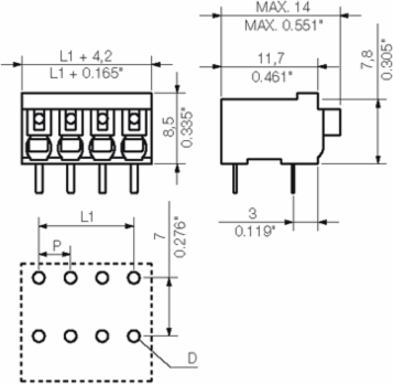

Notes

Additional push button colours on request Operating force of slider max. 40 N Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.13 mm²
Wire connection cross section AWG, min.	AWG 28
Solid, min. H05(07) V-U	0.2 mm²
Flexible, min. H05(07) V-K	0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.25 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.25 mm²
Max. clamping range	1.5 mm²

Clamping range, max.	1.5 mm²
Wire connection cross section AWG, max.	AWG 14
Solid, max. H05(07) V-U	1.5 mm²
Flexible, max. H05(07) V-K	1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	0.75 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	1.5 mm²

Rated Data Acc. To Csa

Institute (CSA)	CSA
Rated voltage (Use group B / CSA)	300 V
Rated current (Use group B / CSA)	10 A
Wire cross-section, AWG, min.	AWG 28
Reference to approval values	Specifications are maximum values, details - see approval certificate.
