Weidmuller 1871240000 LSF-SMT 3.81/17/90 3.5SN BK TU
- MPN: 1871240000
- PPN: WDM-1871240000
CAD
$5.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

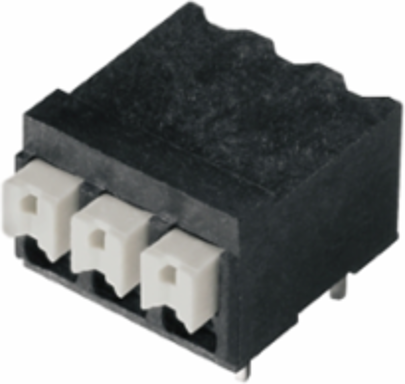

Printed circuit board terminals, 3.81 mm, Number of poles: 17, 90°, Solder pin length (l): 3.5 mm, black, PUSH IN, Clamping range, max. : 1.5 mm², Tube
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 12 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 14
Approvals
- Approvals
- CSA, cURus, EAC, VDE
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 65.16 mm
- Height
- 13.15 mm
- Height of lowest version
- 9.65 mm
- Depth (inches)
- 0.581 inch
Width (inches)2.565 inch
Height (inches)0.518 inch
Depth14.75 mm
Net weight12.17 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

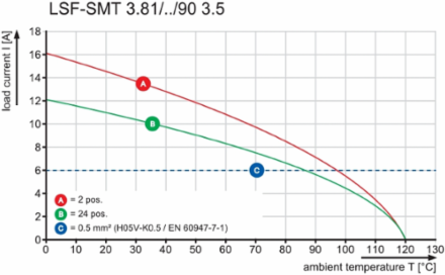

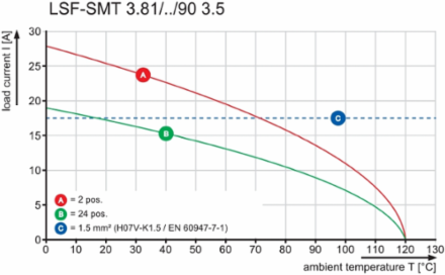

- Rated current, max. number of poles (Tu=20°C)
- 16 A
- Rated current, max. number of poles (Tu=40°C)
- 14 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)17.5 A
Rated current, min. number of poles (Tu=40°C)17.5 A
Rated voltage for surge voltage class / pollution degree II/2320 V
Rated voltage for surge voltage class / pollution degree III/3160 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 80 A
Material Data
- Insulating material
- LCP GF
- Colour of operational elements
- white
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
Material of operational elementsPPA GF
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
Layer structure of solder connection4-6 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
UNSPSC30-21-18-11

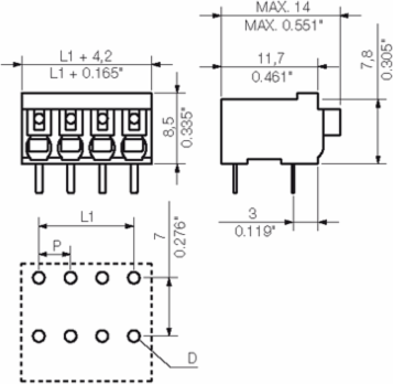

System Parameters
- Product family
- OMNIMATE Signal - series LSF
- Mounting onto the PCB
- THT/THR solder connection
- Pitch in mm (P)
- 3.81 mm
- Number of poles
- 17
- Number of rows
- 1
- Solder pin length tolerance
- 0 / -0.3 mm
- Solder pin dimensions = d tolerance
- 0 / -0.1 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Stripping length
- 8 mm
- L1 in inches
- 2.4 inch
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
- Insulation strength
- ≥ 108 Ω
Wire connection methodPUSH IN
Conductor outlet direction90°
Pitch in inches (P)0.15 inch
Fitted by customerNo
Solder pin length (l)3.5 mm
Solder pin dimensions0.35 x 0.8 mm
Solder eyelet hole diameter (D)1.1 mm
Number of solder pins per pole2
L1 in mm60.96 mm
Touch-safe protection acc. to DIN VDE 0470IP 20
Volume resistance1.60 mΩ
Packing
- Packaging
- Tube
- VPE width
- 0
- Surface resistance
- Rs = 109 - 1012 Ω
VPE length0
VPE height0
Notes
- Notes
- Additional push button colours on request Operating force of slider max. 40 N Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 28
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.25 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.25 mm²
- Max. clamping range
- 1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 14
Solid, max. H05(07) V-U1.5 mm²
Flexible, max. H05(07) V-K1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.0.75 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 10 A
- Wire cross-section, AWG, min.
- AWG 28
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1664286
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 14
