Weidmuller 1988590000 LUF 10.00/01/90 5.0SN BK BX

MPN: 1988590000
PPN: WDM-1988590000

$4.07

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

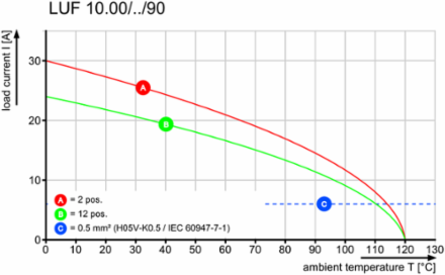

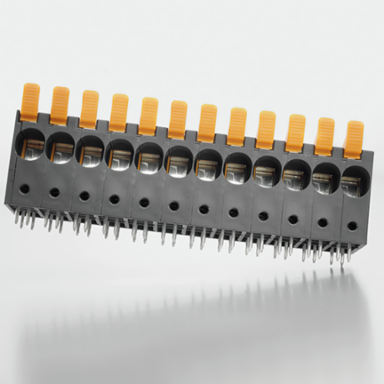

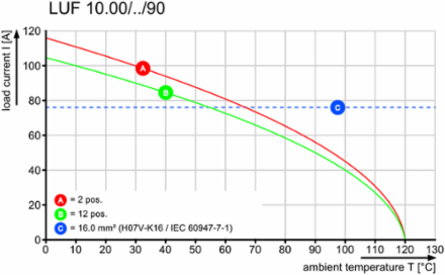

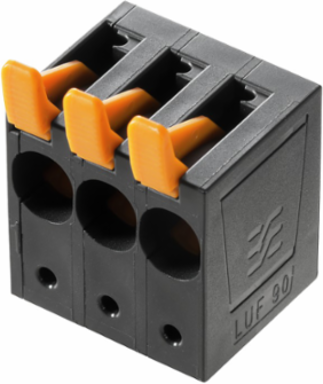

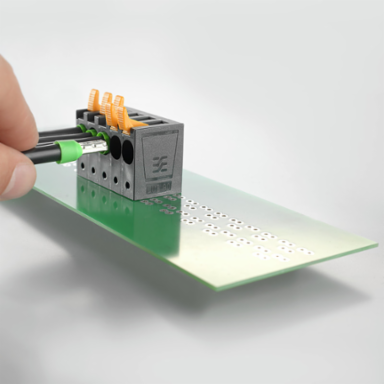

Printed circuit board terminals, 10.00 mm, Number of poles: 1, 90°, Solder pin length (l): 5 mm, black, PUSH IN with actuator, Clamping range, max. : 16 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	61 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 18
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group C / UL 1059)	150 V
Rated voltage (Use group E / UL 1059)	1,000 V
Rated current (Use group C / UL 1059)	61 A
Rated current (Use group E / UL 1059)	61 A
Wire cross-section, AWG, max.	AWG 6

Approvals

Approvals	cURus
UL File Number Search	E60693

ROHS	Conform

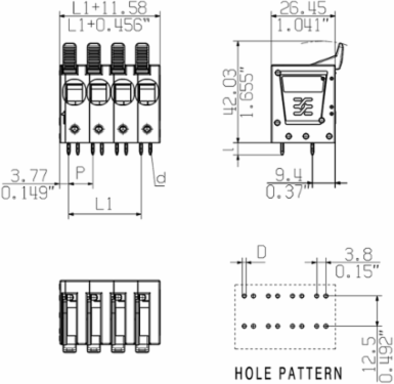

Dimensions And Weights

Width	11.58 mm
Height	47.03 mm
Height of lowest version	42.03 mm
Depth (inches)	1.041 inch

Width (inches)	0.456 inch
Height (inches)	1.852 inch
Depth	26.45 mm
Net weight	12.12 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60947-7-4
Rated current, max. number of poles (Tu=20°C)	76 A
Rated current, max. number of poles (Tu=40°C)	76 A
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV

Rated current, min. number of poles (Tu=20°C)	76 A
Rated current, min. number of poles (Tu=40°C)	76 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV

Material Data

Insulating material	Wemid (PA)
Colour of operational elements	orange
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Layer structure of solder connection	4-6 µm Sn matt
Storage temperature, max.	55 °C
Operating temperature, min.	-40 °C

Colour	black
Material of operational elements	PA4T GF
Insulating material group	I
Insulation strength	≥ 108 Ω
Contact base material	E-Cu
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C

Classifications

ETIM 6.0	EC002643
eClass 9.0	27-44-04-01
eClass 10.0	27-44-04-01

ETIM 7.0	EC002643
eClass 9.1	27-44-04-01

System Parameters

Product family	OMNIMATE Power - series LU
Mounting onto the PCB	THT solder connection
Pitch in mm (P)	10 mm
Number of poles	1
Number of rows	1
Solder pin dimensions	d = 1.2 mm, Octagonal
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Screwdriver blade	0.8 x 4.0
L1 in mm	0 mm
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Insulation strength	≥ 108 Ω

Wire connection method	PUSH IN with actuator
Conductor outlet direction	90°
Pitch in inches (P)	0.394 inch
Fitted by customer	No
Solder pin length (l)	5 mm
Solder eyelet hole diameter (D)	1.6 mm
Number of solder pins per pole	4
Stripping length	18 mm
L1 in inches	0 inch
Touch-safe protection acc. to DIN VDE 57 106	touch-safe with connected connectors from 6 mm²

Packing

Packaging	Box
VPE width	125 mm

VPE length	180 mm
VPE height	50 mm

Notes

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 20
Solid, min. H05(07) V-U	0.5 mm²
Stranded, min. H07V-R	6 mm²
Flexible, min. H05(07) V-K	0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø	5.3mm (B6)

Clamping range, max.	16 mm²
Wire connection cross section AWG, max.	AWG 4
Solid, max. H05(07) V-U	16 mm²
Stranded, max. H07V-R	16 mm²
Flexible, max. H05(07) V-K	16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	16 mm²
Max. clamping range	16 mm²
