Weidmuller 2492000000 LUF 15.00/02/90V 5.0SN BK BX
- MPN: 2492000000
- PPN: WDM-2492000000
CAD
$8.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

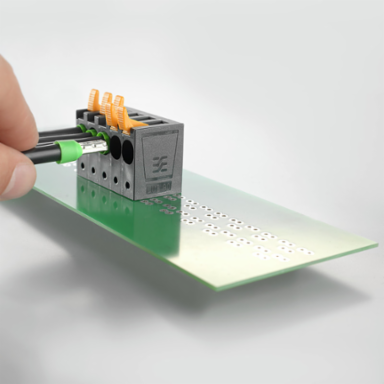

Printed circuit board terminals, 15.00 mm, Number of poles: 2, 90°, Solder pin length (l): 5 mm, black, PUSH IN with actuator, Clamping range, max. : 16 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 58 A
- Rated current (Use group D / UL 1059)
- 5 A
- Wire cross-section, AWG, min.
- AWG 18
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated voltage (Use group E / UL 1059)1,000 V
Rated current (Use group C / UL 1059)58 A
Rated current (Use group E / UL 1059)58 A
Wire cross-section, AWG, max.AWG 6
Approvals
- Approvals
- cURus
UL File Number SearchE60693

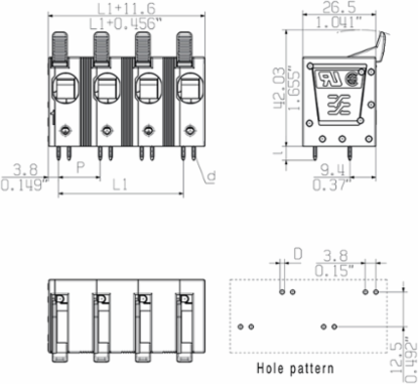

Dimensions And Weights
- Width
- 26.58 mm
- Height
- 47.03 mm
- Height of lowest version
- 42.03 mm
- Depth (inches)
- 1.041 inch
Width (inches)1.046 inch
Height (inches)1.852 inch
Depth26.45 mm
Net weight24.185 g
Rated Data Acc. To Iec

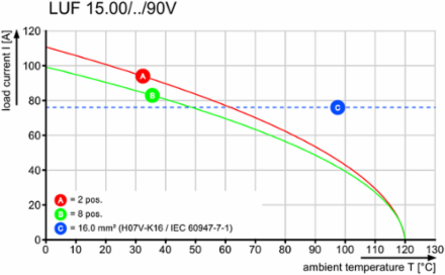

- Rated current, min. number of poles (Tu=20°C)
- 68 A
- Rated current, min. number of poles (Tu=40°C)
- 62 A
- Rated voltage for surge voltage class / pollution degree II/2
- 1,000 V
- Rated voltage for surge voltage class / pollution degree III/3
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 8 kV
Rated current, max. number of poles (Tu=20°C)63 A
Rated current, max. number of poles (Tu=40°C)55 A
Rated voltage for surge voltage class / pollution degree III/21,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/28 kV
Rated impulse voltage for surge voltage class/ contamination degree III/38 kV
Material Data
- Insulating material
- Wemid (PA)
- Colour of operational elements
- orange
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
Colourblack
Material of operational elementsPA4T GF
Insulating material groupI
Insulation strength≥ 108 Ω
Contact materialE-Cu
Storage temperature, max.55 °C
Operating temperature, min.-40 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Power - series LU
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 15 mm
- Number of poles
- 2
- Number of rows
- 1
- Solder pin dimensions
- d = 1.2 mm, Octagonal
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Screwdriver blade
- 0.8 x 4.0
- L1 in mm
- 15 mm
- Touch-safe protection acc. to DIN VDE 0470
- IP20 plugged/ IP10 unplugged
- Insulation strength
- ≥ 108 Ω
Wire connection methodPUSH IN with actuator
Conductor outlet direction90°
Pitch in inches (P)0.591 inch
Fitted by customerNo
Solder pin length (l)5 mm
Solder eyelet hole diameter (D)1.7 mm
Number of solder pins per pole2
Stripping length18 mm
L1 in inches0.59 inch
Touch-safe protection acc. to DIN VDE 57 106touch-safe with connected connectors from 6 mm²
Packing
- Packaging
- Box
- VPE width
- 0 m
VPE length0 m
VPE height0 m
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 18
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, min. H07V-R
- 10 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.5 mm²
- Max. clamping range
- 16 mm²
Clamping range, max.16 mm²
Wire connection cross section AWG, max.AWG 4
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R16 mm²
Flexible, max. H05(07) V-K16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.16 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 58 A
- Wire cross-section, AWG, min.
- AWG 18
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)58 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 6
