Weidmuller 2492190000 LUFS 10.00/10/180V 5.0SN BK BX
- MPN: 2492190000
- PPN: WDM-2492190000
CAD
$39.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

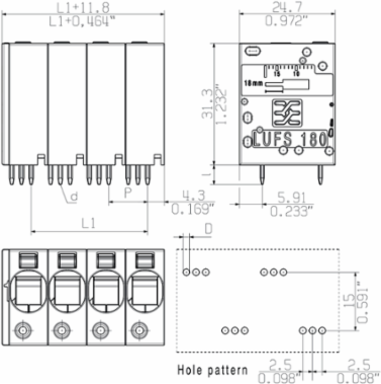

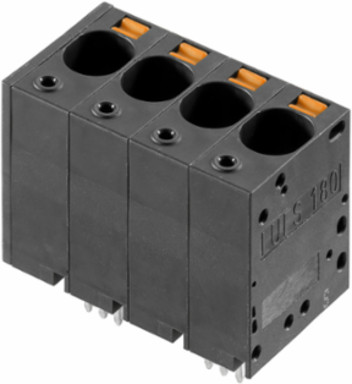

Printed circuit board terminals, 10.00 mm, Number of poles: 10, 180°, Solder pin length (l): 5 mm, tinned, black, PUSH IN, Clamping range, max. : 16 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 57 A
- Rated current (Use group D / UL 1059)
- 5 A
- Wire cross-section, AWG, min.
- AWG 18
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated voltage (Use group F / UL 1059)1,000 V
Rated current (Use group C / UL 1059)57 A
Rated current (Use group F / UL 1059)57 A
Wire cross-section, AWG, max.AWG 4
Approvals
- Approvals
- cURus
UL File Number SearchE60693
Dimensions And Weights
- Width
- 101.58 mm
- Height
- 36.3 mm
- Height of lowest version
- 31.3 mm
- Depth (inches)
- 0.972 inch
Width (inches)3.999 inch
Height (inches)1.429 inch
Depth24.7 mm
Net weight80.881 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60947-7-4

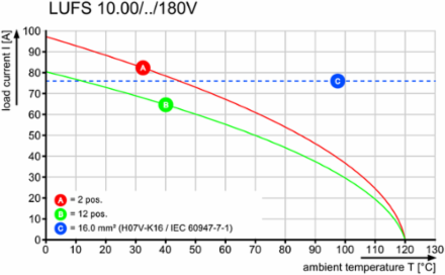

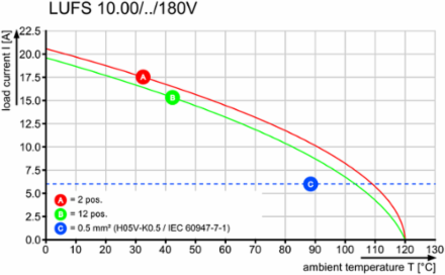

- Rated current, max. number of poles (Tu=20°C)
- 76 A
- Rated current, max. number of poles (Tu=40°C)
- 67 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 6 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
Rated current, min. number of poles (Tu=20°C)76 A
Rated current, min. number of poles (Tu=40°C)76 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Material Data
- Insulating material
- Wemid (PA)
- Colour of operational elements
- orange
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- Contact surface
- tinned
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
Colourblack
Material of operational elementsPA4T GF
Insulating material groupI
Insulation strength≥ 108 Ω
Contact base materialE-Cu
Layer structure of solder connection4-10 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-40 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Power - series LU
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 10 mm
- Number of poles
- 10
- Number of rows
- 1
- Solder pin dimensions
- d = 1.2 mm, Octagonal
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Screwdriver blade
- 0.8 x 4.0
- L1 in mm
- 90 mm
- Touch-safe protection acc. to DIN VDE 0470
- IP20 plugged/ IP10 unplugged
- Insulation strength
- ≥ 108 Ω

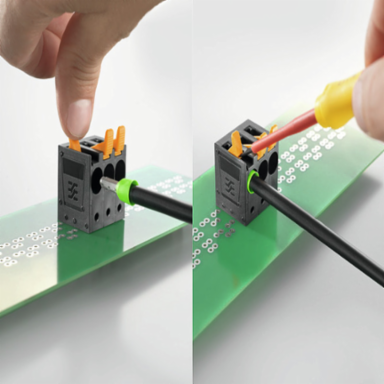

Wire connection methodPUSH IN
Conductor outlet direction180°
Pitch in inches (P)0.394 inch
Fitted by customerNo
Solder pin length (l)5 mm
Solder eyelet hole diameter (D)1.6 mm
Number of solder pins per pole2
Stripping length18 mm
L1 in inches3.543 inch
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Packing
- Packaging
- Box
- VPE width
- 110 mm
VPE length315 mm
VPE height50 mm
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 18
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, min. H07V-R
- 6 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.5 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 5.4 mm x 5.1 mm; 5.3 mm
Clamping range, max.16 mm²
Wire connection cross section AWG, max.AWG 4
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R16 mm²
Flexible, max. H05(07) V-K16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.16 mm²
Max. clamping range16 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 57 A
- Wire cross-section, AWG, min.
- AWG 18
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)57 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 4
