Weidmuller 2014380000 LUP 12.70/03/90 5.0SN BK BX
- MPN: 2014380000
- PPN: WDM-2014380000
CAD
$11.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

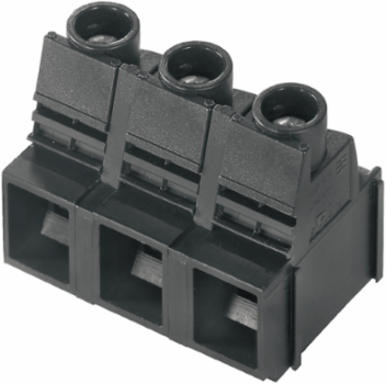

Printed circuit board terminals, 12.70 mm, Number of poles: 3, 90°, Solder pin length (l): 5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 65 A
- Wire cross-section, AWG, min.
- AWG 22
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group C / UL 1059)65 A
Wire cross-section, AWG, max.AWG 6
Approvals
- Approvals
- cURus
- UL File Number Search
- E60693
ROHSConform

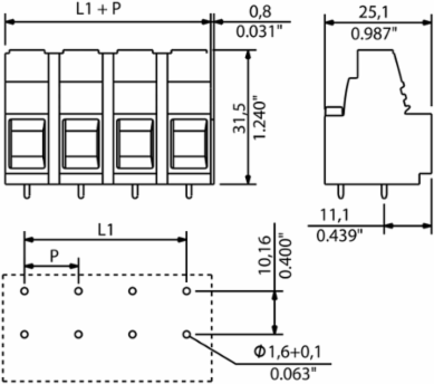

Dimensions And Weights
- Width
- 36.36 mm
- Height
- 36.5 mm
- Height of lowest version
- 31.5 mm
- Depth (inches)
- 0.988 inch
Width (inches)1.431 inch
Height (inches)1.437 inch
Depth25.1 mm
Net weight29.96 g

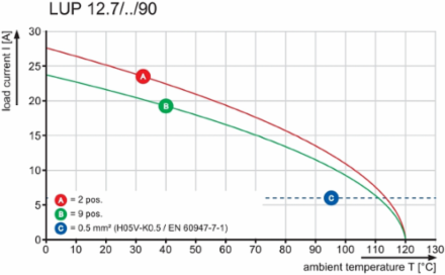

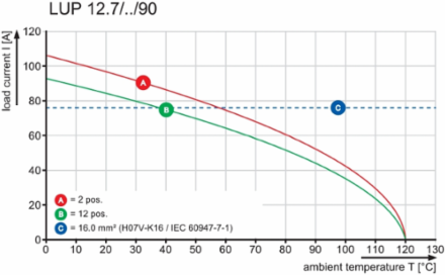

Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 74 A
- Rated current, max. number of poles (Tu=40°C)
- 64 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 6 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
Rated current, min. number of poles (Tu=20°C)76 A
Rated current, min. number of poles (Tu=40°C)76 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Short-time withstand current resistance1 x 1s with 700 A
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 600
- Contact material
- E-Cu
- Layer structure of solder connection
- 1.5-3 µm Ni / 4-6 µm Sn matt
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourblack
Insulating material groupI
UL 94 flammability ratingV-0
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Power - series LUP
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 12.7 mm
- Number of poles
- 3
- Number of rows
- 1
- Solder pin length (l)
- 5 mm
- Solder eyelet hole diameter (D)
- 1.6 mm
- Number of solder pins per pole
- 2
- Screwdriver blade standard
- DIN 5264
- Tightening torque, max.
- 1.5 Nm
- Stripping length
- 12 mm
- L1 in inches
- 1 inch
- Touch-safe protection acc. to DIN VDE 57 106
- Safe from finger touch
Wire connection methodClamping yoke connection
Conductor outlet direction90°
Pitch in inches (P)0.5 inch
Fitted by customerYes
Max. adjacent poles per row12
Solder pin dimensions1.2 x 1.2 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade1.0 x 5.5, PZ 2
Tightening torque, min.1.2 Nm
Clamping screwM 4
L1 in mm25.4 mm
Touch-safe protection acc. to DIN VDE 0470IP20 plugged/ IP10 unplugged
Volume resistance0.50 mΩ
Packing
- Packaging
- Box
- VPE width
- 0 m
VPE length0 m
VPE height0 m
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 The data given under CSA relates to a cUL approval - E60693 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 22
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, min. H07V-R
- 6 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 2.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 2.5 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 5.4 mm x 5.1 mm; 5.3 mm
Clamping range, max.16 mm²
Wire connection cross section AWG, max.AWG 6
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R16 mm²
Flexible, max. H05(07) V-K16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.10 mm²
w. wire end ferrule, DIN 46228 pt 1, max.10 mm²
Max. clamping range16 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated current (Use group B / CSA)
- 65 A
- Wire cross-section, AWG, min.
- AWG 22
Rated voltage (Use group C / CSA)600 V
Rated current (Use group C / CSA)65 A
Wire cross-section, AWG, max.AWG 6
