Weidmuller 1806460000 LX 15.00/05/90 4.5SN GY BX

  • MPN: 1806460000
  • PPN: WDM-1806460000

CAD

$25.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

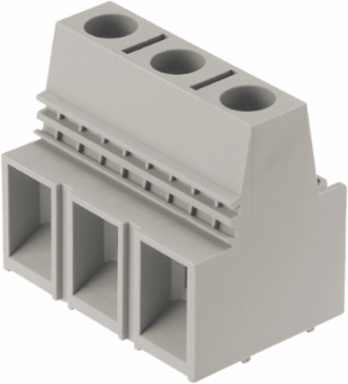

Printed circuit board terminals, 15.00 mm, Number of poles: 5, 90°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 25 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (UR)
UR
Rated voltage (Use group B / UL 1059)
600 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group C / UL 1059)
85 A
Wire cross-section, AWG, min.
AWG 16
Reference to approval values
Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group B / UL 1059)85 A
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 4

Approvals

Approvals
CSA, EAC, UR
UL File Number Search
E60693
ROHSConform

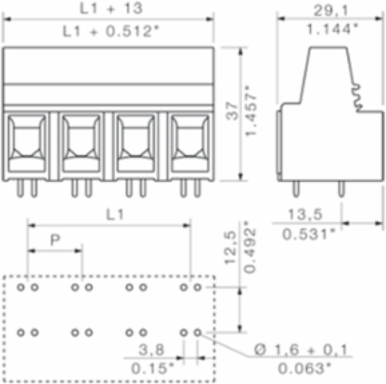

Dimensions And Weights

Width
73 mm
Height
41.5 mm
Height of lowest version
37 mm
Depth (inches)
1.146 inch
Width (inches)2.874 inch
Height (inches)1.634 inch
Depth29.1 mm
Net weight85.5 g

Rated Data Acc. To Iec

tested acc. to standard
IEC 60664-1, IEC 61984

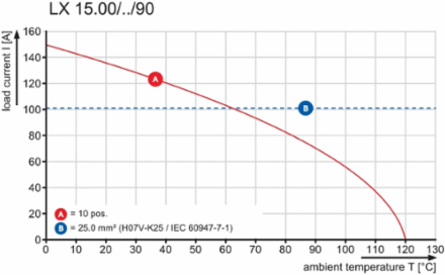

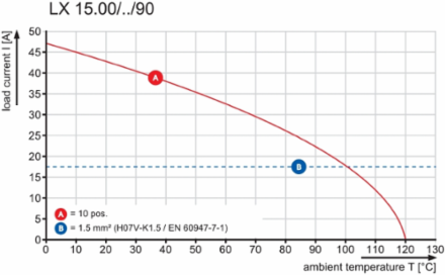

Rated current, max. number of poles (Tu=20°C)
101 A
Rated current, max. number of poles (Tu=40°C)
101 A
Rated voltage for surge voltage class / pollution degree III/2
1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Rated current, min. number of poles (Tu=20°C)101 A
Rated current, min. number of poles (Tu=40°C)101 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Short-time withstand current resistance3 x 1s mit 1000 A

Material Data

Insulating material
Wemid (PA)
Colour chart (similar)
RAL 7032
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact surface
tinned
Storage temperature, min.
-25 °C
Max. relative humidity during storage
80 %
Operating temperature, max.
120 °C
Temperature range, installation, max.
120 °C
ColourPebble grey
Insulating material groupI
Insulation strength≥ 108 Ω
Contact materialE-Cu
Layer structure of solder connection1.5-3 µm Ni / 4-6 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C

Classifications

ETIM 6.0
EC002643
eClass 9.0
27-44-04-01
eClass 10.0
27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
UNSPSC30-21-18-01

System Parameters

Product family
OMNIMATE Power - series LX
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
15 mm
Number of poles
5
Number of rows
1
Solder pin length (l)
4.5 mm
Solder eyelet hole diameter (D)
1.6 mm
Number of solder pins per pole
2
Screwdriver blade standard
DIN 5264
Tightening torque, max.
4 Nm
Stripping length
16 mm
L1 in inches
2.362 inch
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Insulation strength
≥ 108 Ω
Wire connection methodClamping yoke connection
Conductor outlet direction90°
Pitch in inches (P)0.591 inch
Fitted by customerNo
Max. adjacent poles per row10
Solder pin dimensions1.2 x 1.2 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade1.0 x 5.5
Tightening torque, min.2.4 Nm
Clamping screwM 5
L1 in mm60 mm
Touch-safe protection acc. to DIN VDE 0470IP 10
Volume resistance0.50 mΩ

Packing

Packaging
Box
VPE width
172 mm
VPE length56 mm
VPE height218 mm

Notes

Notes
Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.
1.31 mm²
Wire connection cross section AWG, min.
AWG 16
Solid, min. H05(07) V-U
1.5 mm²
Stranded, min. H07V-R
6 mm²
Flexible, min. H05(07) V-K
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
1.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
6.9 mm x 6.9 mm
Clamping range, max.25 mm²
Wire connection cross section AWG, max.AWG 4
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R25 mm²
Flexible, max. H05(07) V-K25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.16 mm²
w. wire end ferrule, DIN 46228 pt 1, max.16 mm²
Max. clamping range25 mm²

Rated Data Acc. To Csa

Institute (CSA)
CSA
Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group C / CSA)
85 A
Wire cross-section, AWG, min.
AWG 16
Reference to approval values
Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1198743
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)85 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 4
