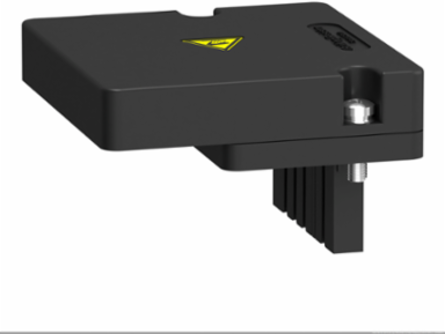

Schneider Electric VW3M9022 Lexium 32i Braking Resistor Module, 30W, 3 Phase, 75 Ohm
- MPN: VW3M9022
- PPN: SCH-VW3M9022
- UNSPSC: 39121552
CAD
$167.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Lexium 32i Braking Resistor Module is engineered for robust performance in 3-phase systems, delivering a maximum output of 30W with an impedance rating of 75 Ohms. This module provides crucial braking support, enhancing the efficiency and safety of variable speed applications by dissipating excess energy when decelerating. Its reliable construction and integration capabilities make it an essential component for those looking to optimize motor control functionality in industrial settings. With this braking resistor, you gain both precision and reliability in managing power dynamics.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Weight | 500 g |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase A4 | 0, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Continuous Power | 30 W |
| Phase | three phase |
| Product Or Component Type | braking resistor module |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Accessory / Separate Part Category | connection accessories |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.07880011667171011 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.2 kg CO2 eq., 0.1938335026442103 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1312017EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2024 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | socket |
| Ohmic Value | 75 Ohm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 32i |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | motor BMI with drive control unit Lexium 32i |
| Customs Code | 8533290000 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To operate as an energy‑consuming product at 149 W for 10 years, assuming 60% load and 50% use rate. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 93 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.2726336193159204 |
| Environmental Disclosure | ENVPEP1312017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | drive control unit LXM32iservo motor with power stage BMI |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-03-21 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1312017EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1312017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 32i |
| Product Or Component Type | braking resistor module |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
