Weidmuller 1386770000 LXXX 15.00/08/90F 4.5SN GY BX
- MPN: 1386770000
- PPN: WDM-1386770000
CAD
$40.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

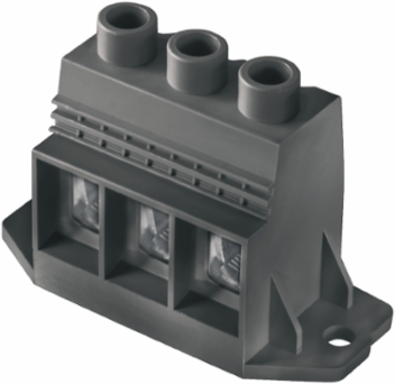

Printed circuit board terminals, 15.00 mm, Number of poles: 8, 90°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 50 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 126 A
- Wire cross-section, AWG, min.
- AWG 20
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group C / UL 1059)126 A
Wire cross-section, AWG, max.AWG 1
Approvals
- Approvals
- EAC, UR
- UL File Number Search
- E60693
ROHSConform

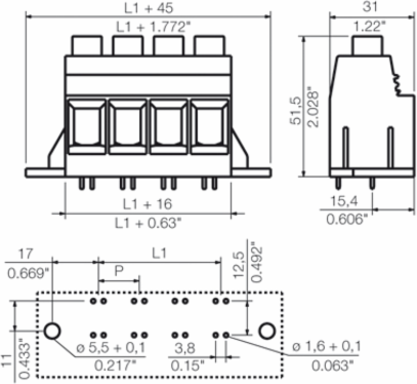

Dimensions And Weights
- Width
- 150 mm
- Height
- 56 mm
- Height of lowest version
- 51.5 mm
- Depth (inches)
- 1.22 inch
Width (inches)5.905 inch
Height (inches)2.205 inch
Depth31 mm
Net weight237.75 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

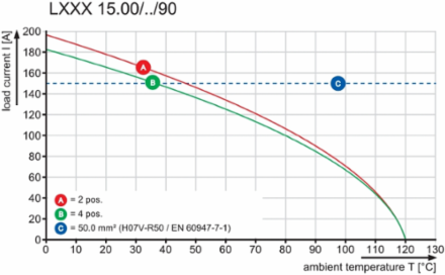

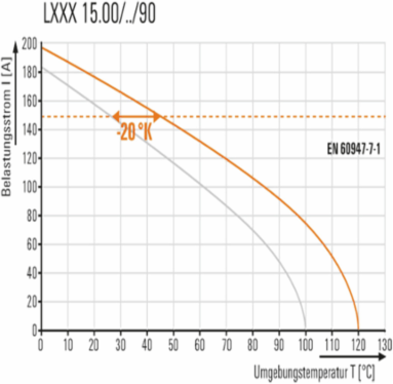

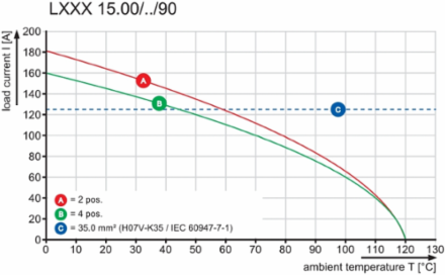

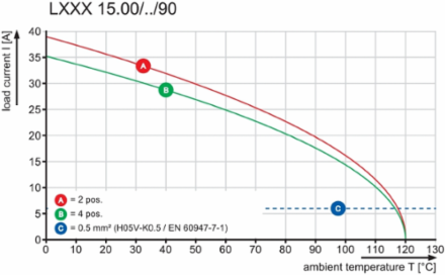

- Rated current, min. number of poles (Tu=40°C)
- 150 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 8 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
Rated current, min. number of poles (Tu=20°C)150 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/31,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 7032
- Comparative Tracking Index (CTI)
- ≥ 600
- UL 94 flammability rating
- V-0
- GWFI
- 960 °C
- Contact surface
- tinned
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
ColourPebble grey
Insulating material groupI
Insulation strength≥ 108 Ω
GWIT960 °C
Contact materialCopper alloy
Layer structure of solder connection1.5-3 µm Ni / 4-6 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002643
- eClass 9.0
- 27-44-04-01
- eClass 10.0
- 27-44-04-01
ETIM 7.0EC002643
eClass 9.127-44-04-01
System Parameters
- Product family
- OMNIMATE Power - series LXXX
- Mounting onto the PCB
- THT solder connection
- Pitch in mm (P)
- 15 mm
- Number of poles
- 8
- Number of rows
- 1
- Solder pin dimensions
- 1.2 x 1.2 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- Screwdriver blade
- 1.2 x 6.5
- Tightening torque, min.
- 2.5 Nm
- Clamping screw
- M 6
- L1 in mm
- 105 mm
- Insulation strength
- ≥ 108 Ω
Wire connection methodClamping yoke connection
Conductor outlet direction90°
Pitch in inches (P)0.591 inch
Fitted by customerNo
Solder pin length (l)4.5 mm
Solder eyelet hole diameter (D)1.6 mm
Number of solder pins per pole4
Screwdriver blade standardDIN 5264
Tightening torque, max.4 Nm
Stripping length18 mm
L1 in inches4.136 inch
Packing
- Packaging
- Box
- VPE width
- 0
VPE length0
VPE height0
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. IP 20 from 16 mm² to 50 mm² The test point can only be used as potential-pickup point. Wire-end ferrules are mandatory for stranded wires with more than 19 strands.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 20
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, min. H07V-R
- 6 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.5 mm²
- Max. clamping range
- 50 mm²
Clamping range, max.50 mm²
Wire connection cross section AWG, max.AWG 1
Solid, max. H05(07) V-U16 mm²
Stranded, max. H07V-R50 mm²
Flexible, max. H05(07) V-K35 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.35 mm²
w. wire end ferrule, DIN 46228 pt 1, max.35 mm²
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 127 A
- Wire cross-section, AWG, min.
- AWG 20
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)127 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 1
