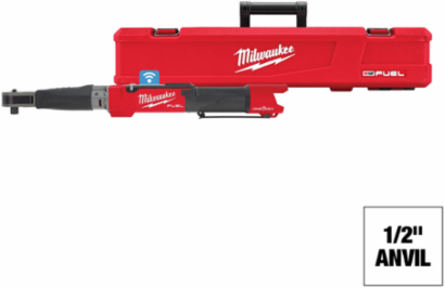

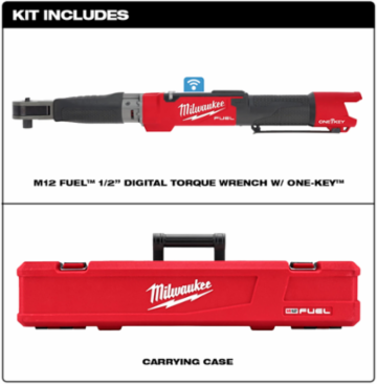

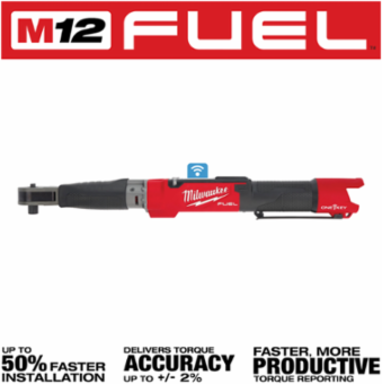

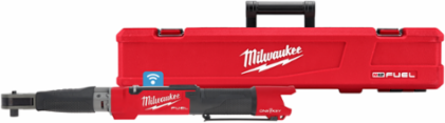

Milwaukee Tool 2466-20 M12 FUEL 1/2 Inch Digital Torque Wrench, 12.5-150 ft-lbs Torque Range, ONE-KEY™
- MPN: 2466-20
- UPC: 045242551637
- PPN: MIL-2466-20
- UNSPSC: 27111715
CAD
$1124.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

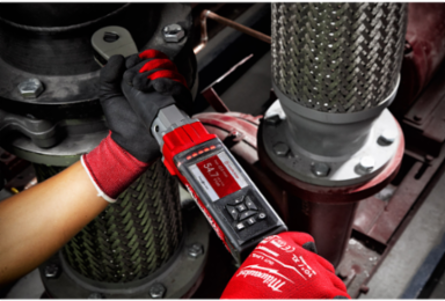

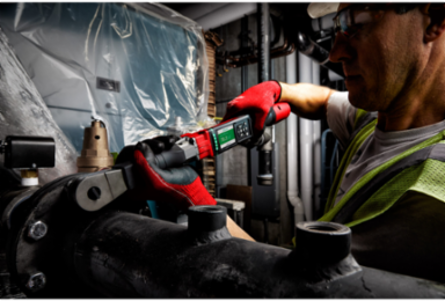

The MILWAUKEE® M12 FUEL™ 1/2” Digital Torque Wrench w/ ONE-KEY™ is the industry's first torque wrench with a motor, delivering increased productivity, precise torque accuracy, and user demanded reporting functionality. The 1/2” torque wrench delivers 50% faster installation time, replacing the hand tool or two tool installation process and providing more control to reduce the over torquing of fasteners.The 1/2” digital torque wrench provides 10-150ft-lbs of torque range and accuracy within 2% for torque critical fasteners. This battery powered torque wrench is equipped with Milwaukee ONE-KEY™ giving users the power to track, report, and manage their tool. This tool will record all of the fasteners that are saved and produce a downloadable report via ONE-KEY™ for the necessary parties requiring the data. ONE-KEY™ allows users to wirelessly connect to a smartphone to customize the tool settings, track its location, manage inventory, and lock the tool out for added security and protection for their investment.
Features

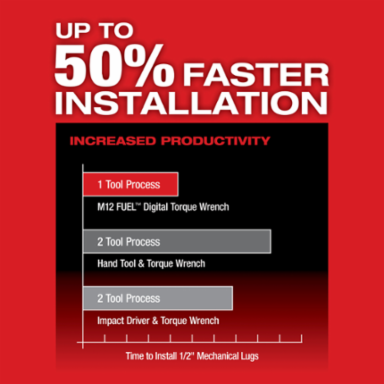

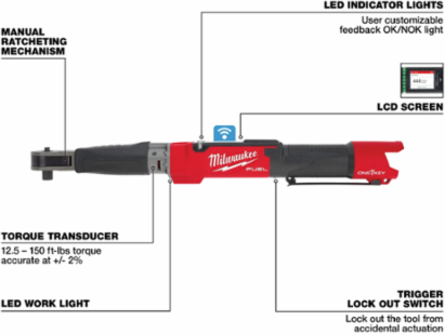

- Delivers up to 50% Faster Installation by replacing the hand tool or two tool installation process with the POWERSTATE™ brushless motor and torque wrench in one tool

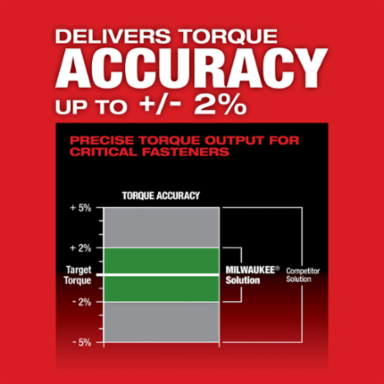

- Precise Torque Accuracy of up to ±2% CW, ±3% CCW of full scale for torque critical fasteners
- Faster, More Productive Torque Reporting w/ ONE-KEY™ providing torque data and customizable reports for inspectors or owners

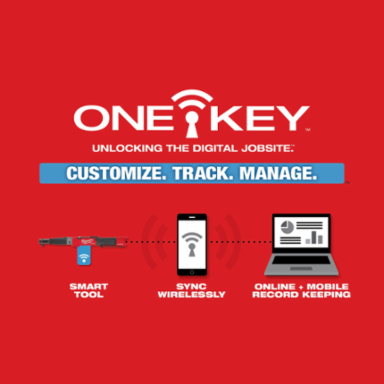

- ONE-KEY™ technology allows for customization, tracking, tool security, and inventory management
- Adjustable run-down torque to control the tools output torque via the motor to prevent over torque
- Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory)
- Four measurement modes (ft-lb, in-lb, Nm, Kgcm)
- Six pre-programmed languages including English, Spanish and French
- Durable design to withstand the most demanding jobsite environments
- Certificate of tool calibration is valid for 12 months from the date of first use
- REDLINK PLUS™ Electronic Intelligence enables advanced communication between batteries and tools for unmatched performance, protection, and productivity.
- REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
- Compatible with all M12™ Batteries & Chargers
Documentation & Downloads
Specifications
Key Specifications
- Anvil Size
- 1/2 in
- Badge Branding
- FUEL™
- Brushless Motor
- Yes
- Chuck Type
- Not Applicable
- Depth
- 23.5 Inches
- FUEL
- Yes
- Material
- Aluminum
- Maximum Torque (in-lbs)
- 1800
- Minimum Arc Swing (°)
- 4.5
- Number of Batteries Required
- 1
- ONE-KEY Enabled
- Yes
- Power Tool Branding
- FUEL™
- Tool Accuracy
- CW: +/-2% of Full Scale/ CCW: +/-3% of Full Scale (Range: 20% - 100% of Full Scale)
- Voltage
- 12
- Weight Excluding Battery (lb)
- 5.3
Anvil TypeBall Detent
Battery SystemM12™
Chuck SizeNot Applicable in
Color FinishBlack;Red;White
DRIVE CONTROL1-Mode
Head Profile1.14 in
Maximum Torque (ft-lbs)150
Measuring Unitsft-lbs, in-lbs, Nm, kg-cm
Motor TypePOWERSTATE™ Brushless
Number of Speed SettingsVariable
Power SourceCordless
Rotations Per Minute Range (RPM)0 - 100
Torque Range12.5 - 150 ft-lbs
Weight - Battery Installed (lb)5.7
Country of OriginChina
