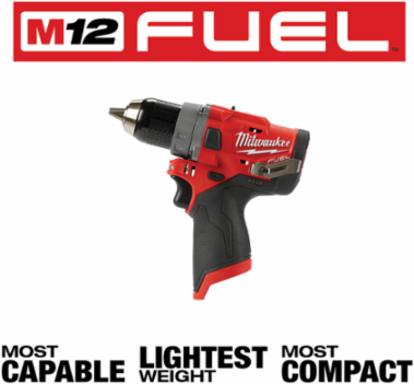

Milwaukee Tool 2503-22 M12 FUEL™ 1/2 in. Drill Driver Kit
- MPN: 2503-22
- UPC: 045242508990
- PPN: MIL-2503-22Z
- UNSPSC: 27112703
CAD
$245.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

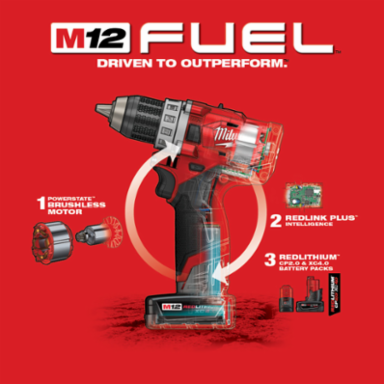

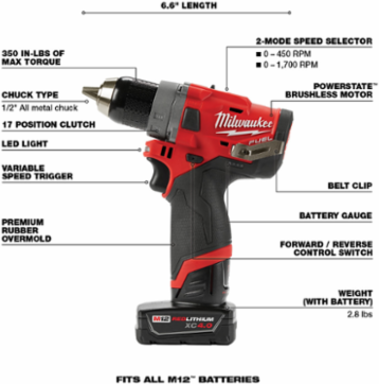

The M12 FUEL™ drill driver is the most capable, lightest weight, most compact tool in its class. The POWERSTATE™ brushless motor delivers the power to do a wide variety of applications at 1700 RPM’s and 350 in-lbs of torque. Weighing only 2.3 lbs it is extremely portable, great for overhead applications, reduces fatigue throughout the day. At 6.6 in. in length this tool has the best access in tight spaces. Redlink™ plus intelligence protects the tool from overloads and overheating while ensuring maximum performance. Using REDLITHIUM™ 2.0 Ah compact and 4.0 Ah extended capacity battery packs they deliver more work per charge and more work over the life of the pack than competitive batteries.
Features
- Most capable 12 V drill with the power to perform a wide range of applications
- Lightest weight in its class for tool belt portability and less fatigue in the work day
- Most compact in its class for the best access in tight spaces
- 1/2 in. all metal chuck for maximum grip and bit retention
- E-clutch for consistent repeatability in driving applications
- 1700 RPMs for faster drilling speeds
- 350 in-lbs of peak torque
Documentation & Downloads
Specifications
Key Specifications
| Powered Tool Power Source | Electric - Cordless |
|---|---|
| Cordless / Corded | Cordless |
| Chuck Design | Keyless |
| RPM Range | 0-1700 |
| Maximum Torque (in-lbs) | 350.0 |
| Overload Protection | Yes |
| Housing Material | Glass-filled Nylon |
| Lock-on Switch | No |
| Switch Type | Trigger |
| Width | 2.1 Inches |
| Net Tool Weight (lbs) | 2.3 |
| Number of Batteries Required | 1 |
| Battery Ampere-hour (Ah) | 2.0 |
| Charger Included | Yes |
| Product Storage Included | Case |
| ETL Listed | Yes |

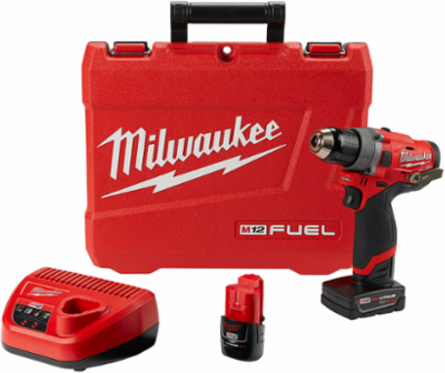

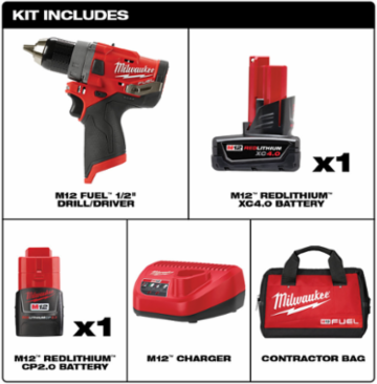

| Package Contents | (1) Drill Driver, (2) Batteries, (1) Battery Charger, (1) Belt Clip, (1) Carrying Case |
| Drill Type | Variable Speed Drill |
|---|---|
| Chuck Size | 1/2 in |
| Maximum RPM | 1700.0 |
| Variable Speed | Yes |
| Reverse | Yes |
| Color / Finish | Red/Black |
| Collet / Chuck Material | Metal |
| Rocker Switch | No |
| Length | 6.6 Inches |
| Side Handle | No |
| Number of Batteries Included | 2 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Battery Voltage (V) | 12 |
| Battery Charger Input Voltage (V) | 120.0 |
| CSA Certified | No |
| UL Listed | Yes |
