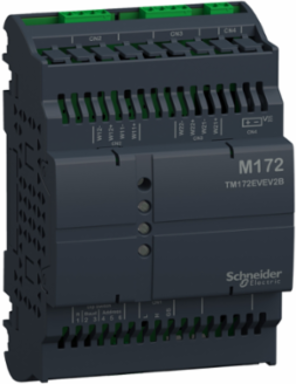

Schneider Electric TM172EVEV2B M172 Expansion 2 EEV Driver Bipolar
- MPN: TM172EVEV2B
- PPN: SCH-TM172EVEV2B
- UNSPSC: 32151703
CAD
$249.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This driver belongs to Modicon M171/M172 range of controllers. It is an electronic expansion valve drivers for dual valves, bipolar, and communicate with controllers via CAN expansion bus. It figures one CAN port and one removable 3-way screw connector. It is supplied with screw terminal blocks. its power consumption is 30W at 24V DC. It weighs 0.119kg. It measures 72mm wide, 113mm high, 60mm deep. It is designed to control electronic expansion valves used in various types of refrigeration systems. It is certified CE, UL, CSA, EAC, RoHS China. It is compatible with Modicon M172 Optimized and Modicon M172 Performance logic controllers.
Features
- Modicon M171/M172 logic controllers help to maximize profitability/energy efficiency, using scalable automation control
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 60 mm |
|---|
Complementary Attributes
| Maximum Power Consumption In Va | 30 VA 24 V AC |
|---|
| Us Rated Supply Voltage | 24 V +/- 10 % AC20...38 V DC |
|---|
Important Information Attributes
| Certificate Agency | CE, CSA, EAC, RCM, cURus |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.2805969816664054 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 16 kg CO2 eq., 15.82672706282223 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2021-01-11 |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2008004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2038 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Display Type | Without Display |
| Number Of Port | 1 CAN port - 1 removable 3-way screw connector |
| Power Consumption In W | 30 W 24 V DC |
| Product Or Component Type | expansion unit |
| Returnability | No |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 72 mm |
| Customs Code | 8538908180 |
| Packaging Weight In G | 67.9 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Carbon Footprint Of The Distribution Phase A4 | 0.05065850890316906, 0.1 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.03259169612977602, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 239 kg CO2 eq., 239.1900048061637 |
| Local Publishable Date | 2026-01-12 |
| Pre Comm Date | 2021-01-12 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Mounting Support | DIN rail |
| Overvoltage Category | I |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M171/M172 |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 255 kg CO2 eq. |
| Upgradeability | Yes |
| Database Version | 2024-01 |
| Height Nominal | 113 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To drive unipolar valves in HVAC/R applications, a 100% of the time for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 525.6 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -20-65 °C-20-65 °C |
| Environmental Disclosure | ENVPEP2008004EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2025-06-26 |
| Psr Version | No PSR |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 255.38057905568527 |
| Circularity Profile | ENVEOLI2008004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2008004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | expansion unit |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC001419 |
|---|---|
| ETIM 10 | EC001419 |
| ETIM 9 | EC001419 |
|---|
