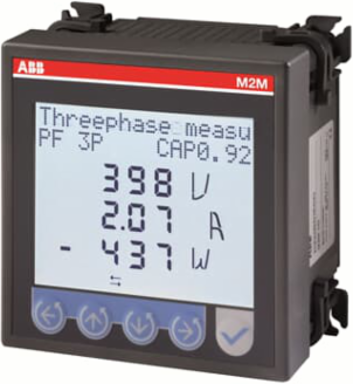

ABB 2CSG299903R4052 M2M ETHERNET Network Analyzer 96 mm x 96 mm, 10-500 V AC, Digital with 2 Outputs
- MPN: 2CSG299903R4052
- UPC: 888614515178
- PPN: ABB-2CSG299903R4052
CAD
$1934.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
M2M is a network analyser with 2 digital outputs, 2 relay outputs, aux supply 24- 230 V a.c./d.c. and embedded RJ45
Specifications
Dimensions
| Product Net Width | 0.096 m |
|---|---|
| Product Net Depth / Length | 77 mm |
| Product Net Height | 0.096 m |
|---|---|
| Product Net Weight | 0.400 kg |
Technical
| Meter Type | Digital |
|---|---|
| Dimensions | 96 mm x 96 mm |
| Options Provided | Total harmonic distortion (THD) |
| Power Loss | at Rated Operating Conditions per Pole 7 W |
| Mounting Type | Front-panel |
|---|---|
| Rated Operational Voltage | 10 ... 500 V AC |
| I/O Option | 2 digital output |
Container Information
| Package Level 1 Units | 1 piece |
|---|---|
| Package Level 1 Height | 0.23 m |
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 Width | 0.11 m |
|---|---|
| Package Level 1 Depth / Length | 0.155 m |
| Package Level 1 EAN | 8012542999034 |
Classifications
| Object Classification Code | P |
|---|---|
| ETIM 5 | EC001194 - Power quality analyzer |
| ETIM 7 | EC001194 - Power quality analyser |
| ETIM 4 | EC001194 - Power quality analyzer |
|---|---|
| ETIM 6 | EC001194 - Power quality analyzer |
Environmental
| Ambient Air Temperature | Operation -5 … +55 °C |
|---|
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
|---|
Ordering
| Minimum Order Quantity | 1 piece |
|---|---|
| Replacement Product ID (NEW) | 2CSG204471R4051 |
| Customs Tariff Number | 90303100 |
|---|
