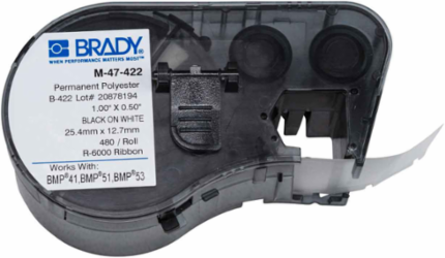

Brady M-47-422 BMP51 BMP53 BMP41 Polyester Labels, 0.5" H x 1.000" W, Cartridge of 480 Labels
- MPN: M-47-422
- UPC: 662820999775
- PPN: BRD-M4-7-422
- UNSPSC: 55121612
CAD
$55.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Thermal transfer printable, glossy Permanent Polyester (B-422) labels are ideal for use in all commercial and industrial applications.
Features
- Aggressive adhesive good for powder-coated and textured flat surfaces including low surface energy plastics
- Designed to withstand exposure to numerous solvents
- UL approved;CSA accepted
- All-in-one cartridge includes label supply and R6000 Series ribbon
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Asset Tracking; Barcode Labeling; Circuit Board Labeling; Component and Equipment Labeling; Data and Telecommunications Labeling; General Identification; Warehouse Marking
- Color
- Black on White
- Diagram
- Icon 3 (triangle)
- Finish
- Gloss
- Label/Media Format
- Label/Media in Cartridge with Ribbon
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board; General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BMP41; BMP51
- Quantity per Row
- 1
- Ribbon Series
- R6000 Halogen Free
- Shape
- Rectangle
- Software
- LabelMark
- Total Qty per Pack
- 480 Label(s) / Box
- Trade Name
- ToughBond
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Polyester
- SAP B-Number
- B-422
- Dimensions (Metric)
- 25.40 mm W x 12.70 mm H
- Height (in/ft/yd)
- 0.5 in
- Label/Tape Size (in/ft/yd)
- 0.5 in H x 1 in W
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -40 °F
- Size - Width (mm)
- 25.40 mm
- Thickness (mm/cm/m)
- 0.102 mm
- Width (mm/cm/m)
- 25.4 mm
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy; Rough
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA; UL Recognized
For Use with PrinterBMP®41 Label Printer; BMP®51 Label Printer; BMP®53 Label Printer
Manufacturer Part NumberM-47-422
Print TechnologyThermal Transfer
Printer CompatibilityBMP41; BMP51; BMP53
Quantity per Roll480
Ribbon ColorBlack
Secondary Label IncludedSecondary Label is Not Included
Smart CellYes
Tape ColorWhite
Total Quantity480
Adhesive (Y/N)Yes
Brady Material NumberB-422
Label PropertiesAggressive Adhesive Labels; Heat Resistant Labels; Permanent Adhesive Labels
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.5 in H x 1 in W
Dimensions 20.5 in H x 1 in W
Height (mm/cm/m)12.70 mm
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-40 °C
Sign Size-General0.5 in x 1 in
Thickness (in/ft/yd)0.004 in
Width (in/ft/yd)1 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
