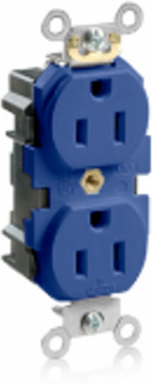

Leviton M5262-SB M5262-SB, 15 Amp
- MPN: M5262-SB
- PPN: LEV-M5262-SB
CAD
$16.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lev-Lok Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Specifications
Standards and Certifications
- NEMA
- WD-1 & WD-6
- NOM Certified
- 057
- Warranty
- 10-Year Limited
cULusListed
ANSIC-73
Material Specifications
- Cover Material
- Nylon
- Mounting Strap
- Galvanized Steel with Riveted Ground Contacts
- Line Contacts
- 0.040" Thick Solid Brass
- Bushing
- Solid Brass
Base MaterialNylon
Ground ClipsBrass
Locking PinsSolid Brass
Mounting ScrewsTriple Combination Head, Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular Terminals
Product Features
- Color
- Blue
- Country of Origin
- China
NEMA5-15R
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40C-60C
Electrical Specifications
- Amperage
- 15 Amp
- Pole
- 2
- Grounding
- Self-Grounding
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Voltage125 Volt
Wire3
Dielectric VoltageWithstands 2000V per UL498
Current InterruptingCertified for current interrupting at full rated current
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
