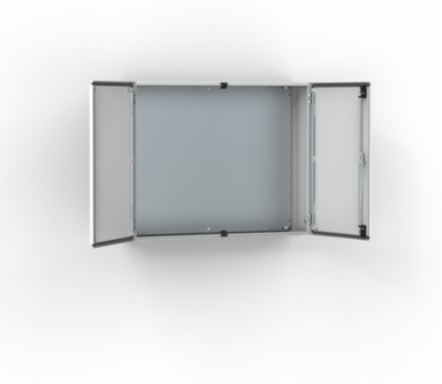

nVent Hoffman MAD1001030R5 Double Door Enclosure 39.37 x 39.37 x 11.81 Inch Mild Steel RAL 7035
nVent Hoffman MAD1001030R5 Double Door Enclosure 39.37 x 39.37 x 11.81 Inch Mild Steel RAL 7035
- MPN: MAD1001030R5
- UPC: 783510486617
- PPN: HOF-MAD1001030R5
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3501.08/ EA
Description
Ideal installation in confined spaces where a single door utilizes too much space in front of enclosure. This Double Door Enclosure, MAD, MAD1001030R5 item measures 1000x1000x300mm with a material of Steel, color Lt Gray.
Features
- Material: Body: 1.5 mm mild steel. Gland plate: 1.4 mm mild steel. Door: 2 mm mild steel Mounting plate: 2 mm galvanized steel / 2.5 mm MAD1001030R5 and above.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Inner M6 welded studs to mount door profiles MMDP. Two removable mounting profiles on the right hand door and two on the left hand door. Sealing is ensured by an injected one piece polyurethane gasket.
- Lock: Customized lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Espagnolette three point locking. Other inserts are available as an accessory.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: IP 55, TYPE 12, IK 10. For outdoor installation, the use of a rain hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Finish: RAL 7035 structured powder coating.
- Delivery: Enclosure with doors and mounting plate (not included for item numbers ending with PER5). Two door mounting profiles on each door. Gland plate(s) with gasket(s), metallic double-bit 3 mm key, and mounting accessories. Earthing facilities.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Mounting Plate Included
- Yes
- Protection Rating
- NEMA Type 12
- Latch Quantity
- 1
- Color Code
- RAL 7035
- Door Thickness
- 2
- Gland Plate Opening Depth
- 96
- Number of Gland Plate Openings
- 2
- Number of Outlet
- 1
- Size
- 39.37 x 39.37 x 11.81 inch
- Insulation
- No
- Cable Entry
- No
- Cubic Capacity
- 11 Cu-ft
Height (H)1,000
Depth (D)300
Panel Size970 x 950
Max Mounting Depth282
FinishPowder Coated
Body Thickness1.5
Gland Plate Opening Width410
Gland Plate Type3
Weight72.9
MaterialMild Steel
ColorRAL 7035 Light Gray
ConstructionBody: 16 gauge | Door: 14 gauge
MountingWall Mounted
NEMA RatingNEMA Type 12 | NEMA Type 13
