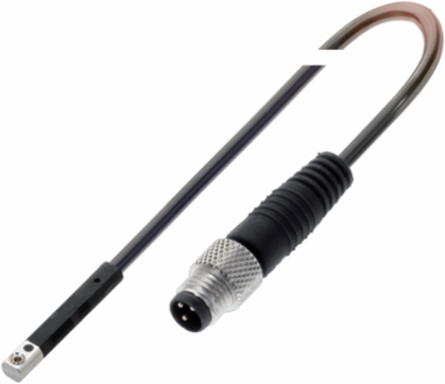

Balluff BMF 243K-NS-C-2A-SA2-S49-00,3 Magnetic field sensors for C-slot BMF 243K-NS-C-2A-SA2-S49-00,3
- MPN: BMF 243K-NS-C-2A-SA2-S49-00,3
- PPN: BAL-BMF00EN
CAD
$64.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 24 x 3 x 3.75 mm
- Cable
- PUR, 0.3 m
- Mounting
- can be installed in C-slot from above
- Switching output
- NPN Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM8x1-Male, 3-pin
ApplicationPneumatic cylinder with C-slot, e.g. SMC, Festo*, Schunk, Sommer, Gimatic (*not suitable for Festo Series ADVC and AEVC)
Housing materialPA 12
Switching frequency3000 Hz
Ambient temperature-25-85 °C
Approval/ConformitycULus, CE, WEEE
