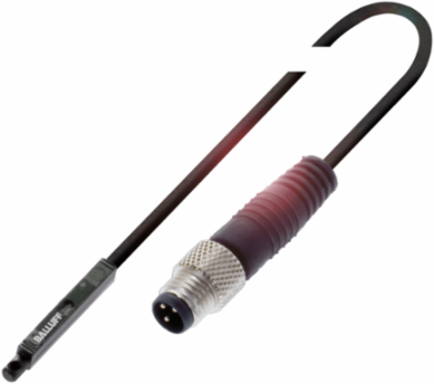

Balluff BMF 303K-PO-C-2A-SA7-S49-00,3 Magnetic field sensors for round cylinders BMF 303K-PO-C-2A-SA7-S49-00,3
- MPN: BMF 303K-PO-C-2A-SA7-S49-00,3
- PPN: BAL-BMF00AH
CAD
$224.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our cylinder sensors for round cylinders are integrated into different applications with the appropriate hose clamp and mounting bracket. The mounting bracket concept is suitable for most types of cylinders up to 80 mm piston diameter. Features: contact-free detection of the piston position through the cylinder wall, precise switching point, wear-free, resistant to dirt, secure grip, fast installation.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 25.5 x 3 x 4.5 mm
- Cable
- PUR, 0.30 m
- Switching output
- PNP Normally closed (NC)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM8x1-Male, 3-pin
Housing materialLCP
Switching frequency7000 Hz
Ambient temperature-25-85 °C
Approval/ConformitycULus, CE, WEEE
