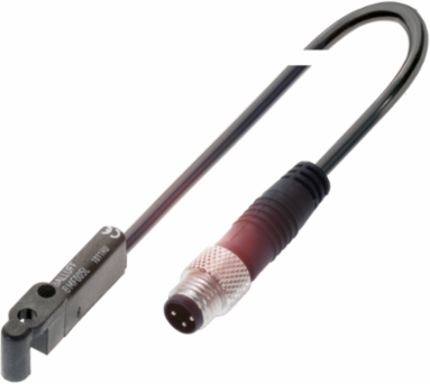

Balluff BMF 305K-PS-C-2-SA2-S49-00,4 Magnetic field sensors for tie rod cylinders BMF 305K-PS-C-2-SA2-S49-00,4
Balluff BMF 305K-PS-C-2-SA2-S49-00,4 Magnetic field sensors for tie rod cylinders BMF 305K-PS-C-2-SA2-S49-00,4
- MPN: BMF 305K-PS-C-2-SA2-S49-00,4
- PPN: BAL-BMF005M
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$124.69/ EA
Description
Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.
Specifications
Specifications
- Dimension
- 33.5 x 5 x 10.5 mm
- Cable
- PUR, 0.4 m
- Housing material
- LCP
- Switching frequency
- 10000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- CE, cULus, WEEE
ConnectionM8x1-Male, 3-pin
Applicationlarger actuators
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
