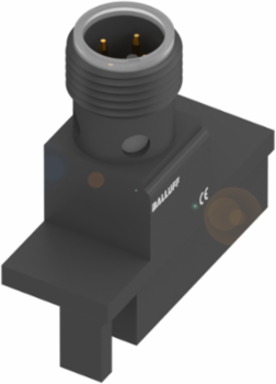

Balluff BMF 305M-PS-W-2-S4 Magnetic field sensors for tie rod cylinders BMF 305M-PS-W-2-S4

Magnetic field sensors for tie rod cylinders BMF 305M-PS-W-2-S4
  • MPN: BMF 305M-PS-W-2-S4
  • PPN: BAL-BMF0067

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$207.79/ EA

Description

Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.

Specifications

Specifications

Dimension
33.5 x 5 x 33.5 mm
Application
larger actuators, Welding area
Switching output
PNP Normally open (NO)
Operating voltage Ub
10-30 VDC
Magnetic field immune
Weld-immune (AC)
Approval/Conformity
cULus, CE, WEEE
ConnectionM12x1-Male, 4-pin, A-coded
Housing materialAluminum
Switching frequency10 Hz
Ambient temperature-25-70 °C
IP ratingIP67
